2-Way Telescope Tripod

The 2-way telescope tripod is the first tripod all over the world that enables both normal and overhead scanning.
Be flexible with this tripod: Raise your laser scanner into the upward or wind it down. The tripod allows not only scanning in a height of 4.00m (157.5 in), but also overhead scanning of shafts (manhole tripod / chamber tripod), for instance.

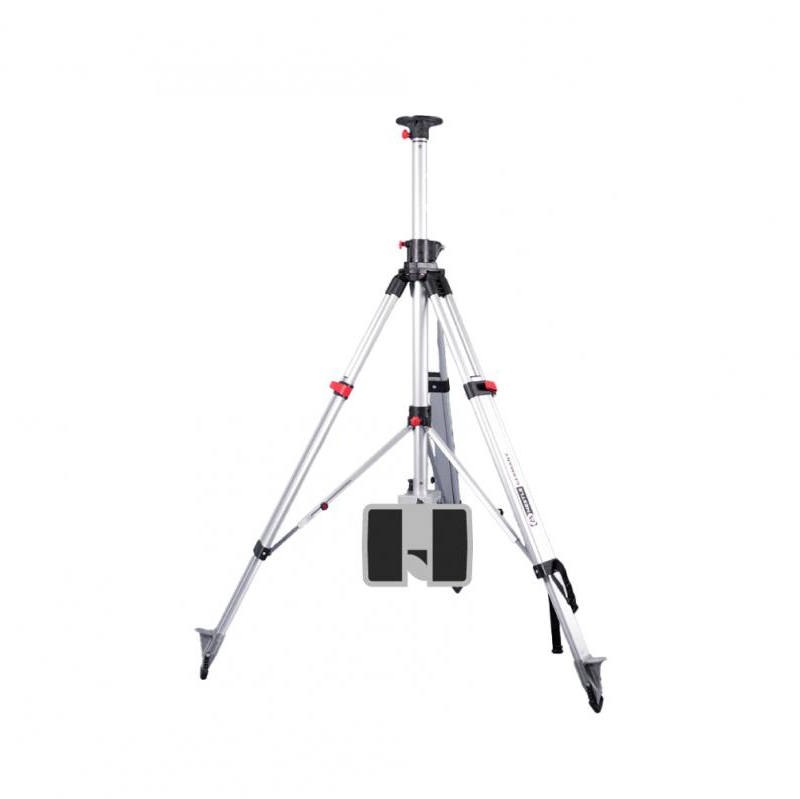

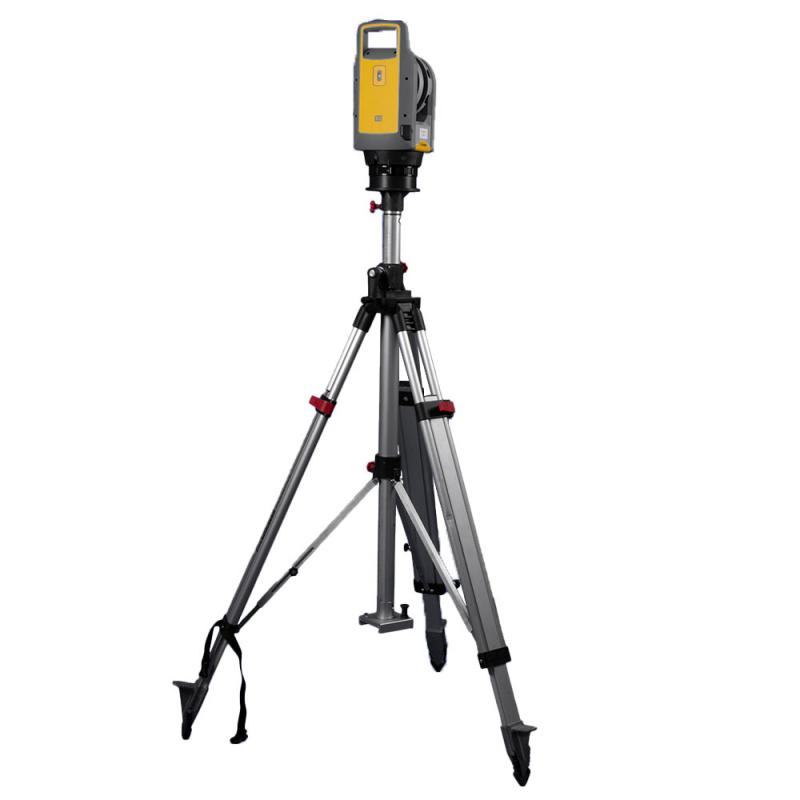

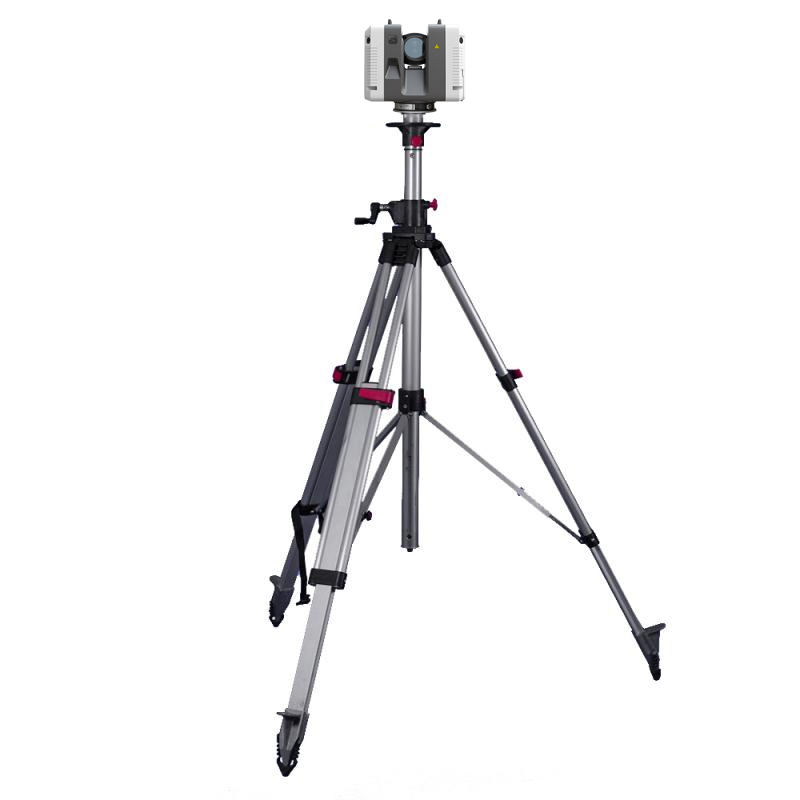

The main rod has a support plate with a 5/8 inch connection. Depending on the measuring task, the support plate can be connected upright or head first (e.g. for manhole scanning). Then, the 4 provided extension tubes are inserted at the further end and secured. Thus, you can crank your laser scanner upwards or downwards on and on.

The 3/8 inch adapter included in the delivery allows using the tripod with FARO Focus.

For safe scanning overhead, we recommend the 3D safety adapter.

Developed in Germany.


Designated use:

scanner usable over several heights - without assembly, disassembly and modification
enlargement of the possible scanner positions
overhead scanning
Product characteristics - 2-way telescope tripod:

tripod: 5/8 inch connection; adapter for 3/8 inch connection is included in the delivery
indirect crank drive with enhanced gear unit
The crank drive can be operated by means of a crank or a screwdriver.
anti-twist geared column
additional leg braces for more stability
solid and quick locking mechanism
spirit level
set of shoes for tripod can be used on various surfaces
minimum effective depth: approx. -4.50 m (177.2 in) below the earth's surface
maximum useful height: approx. 4.00 m (157.5 in)
transport length: approx. 1.30m (51.2 in)
weight: approx. 8,5 kg
flat support plate with ø 110 mm
During long-term usage, the scanner's weight should not be higher than 20kg.
4 extension tubes (each 1m (39.4 in)) in a robust transport case included
suited for all scanners with 5/8" and 3/8" connection
Delivery contents:

1 aluminum telescope tripod with 5/8 inch
4 extension tubes in a robust transport case
1 crank for manual operation
1 bit for comfortable handling of the tripod by means of a screwdriver
special screwdriver for securing the single tubes
1 3/8 inch adapter
Optional delivery contents:

tripod dolly
extension tube
screwdriver
3D safety-adapter for overhead scanning

Synonym: manhole tripod, chamber tripod, shaft tripod

Product weight:16,00 Kg
