Checkerboard targets with magnetic back side
Useful: Due to the magnetic back side, the laser scanning checkerboard target can be affixed arbitrarily to numerous places without screws and assembly.
Universal: The laser scanning checkerboard target can be used together with a laser scanner or a tachymeter.
Flexible: Due to the compact dimensions, the checkerboard targets are perfectly suited for field work. The wide target range ensures that the checkerboard target is a unique laser scanner reference mark.
Product characteristics:
very light (150 g) and pliable plates with magnetic back side
weather-resistant
The checkerboard target can be attached arbitrarily to all smooth metallic surfaces, such as steel columns, electrical boxes, fire alarm systems, doors or door frames, construction site trailers, ...
dimensions of the checkered pattern: 20cm x 20cm (7.9 in x 7.9 in)
dimensions of the plate: 24cm x 24cm (9.4 in x 9.4 in)
thickness of the checkerboard target: 0.9mm (0.04 in)
Designated use:
registration mark visible up to 25m (984.3 in)
can be sued flexibly on smooth metal surfaces
weather-resistant checkerboard target for outdoor use
If no metal surface is in place, the checkerboard targets can be attached easily by means of adhesive tape. The 2cm (0.79 in) wide border is perfectly suited for that purpose without the adhesive tape concealing the checkered pattern.
Compatible laser scanners
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Trimble TX8
Leica HDS 4400/6100
Leica ScanStation P20/ P30/ P40
Teledyne Polaris
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
aircraft construction and naval architecture
forensic
Delivery contents:

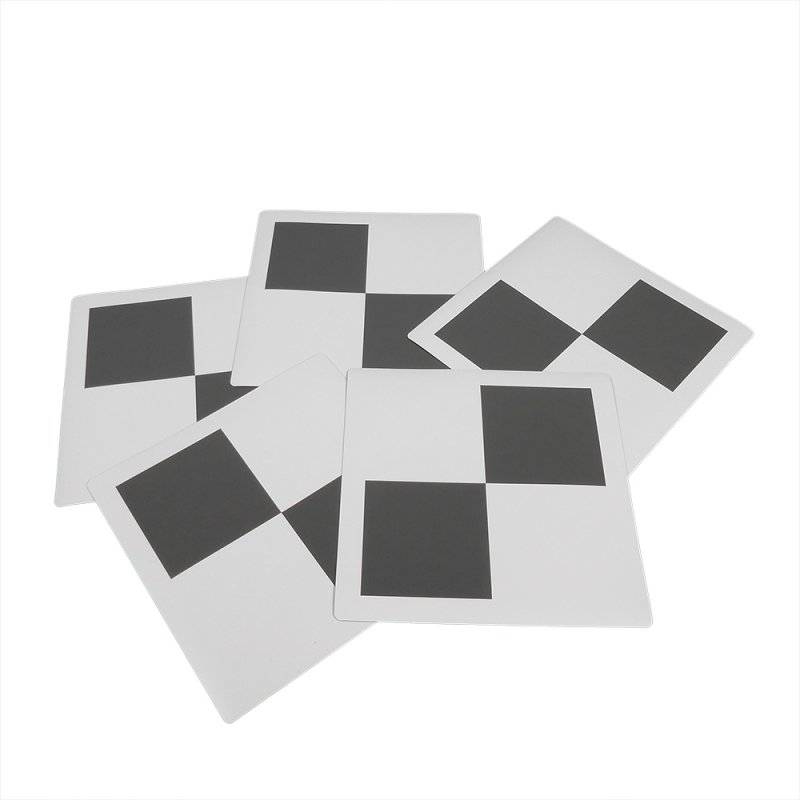

Set consisting of 5 magnetic laser scanner checkerboard targets
Synonyms: target plate, checkered pattern, checkerboard, laser scanner reference target
Product weight:1,00 Kg
