Arena4D PointClouds for SolidWorks (Professional) - Annual License

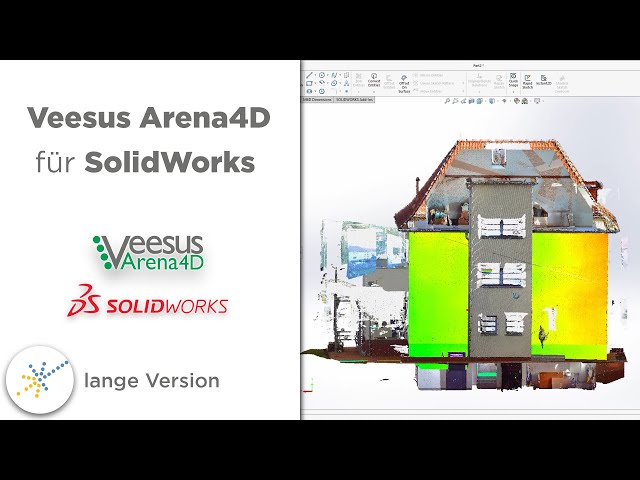

Arena4D plug-in for SolidWorksThe Veesus plug-in for SolidWorks software, leverages the power of the XStreamEngine for point clouds, to allow massive sizes of data to be loaded into the native SolidWorks Environment.

Once the point cloud has been loaded into the SolidWorks environment, the plug-in also offers powerful point cloud manipulation tools such as, slicing, clipping, smoothing, lighting, magnification, colour ramp and Export.

The Professional version extends the Standard version by some functions.

Product characteristics

All standard features included:
Massive point clouds
Stream points clouds from remote Veesus Point Server
Slice through point clouds
Generate slice from SolidWorks plane
Generate SolidWorks plane from slice
Draw points, lines and polylines straight on to the point cloud data
Align, move and rotate point clouds
Adjust brightness & contrast of point clouds
Apply dynamic lighting to point clouds
Apply transparency to point clouds
Apply programmable "relief" shader to point clouds
Clip and hide selections of point clouds
Includes the Veesus XStreamEngine
Simple user interface with powerful features
Clash detection
Copy selections
Delete selections
Create plane through selections
Create CSV report of point distances from a plane
Compatibility with CAD software

SolidWorks
Delivery contents

Annual single-user license
