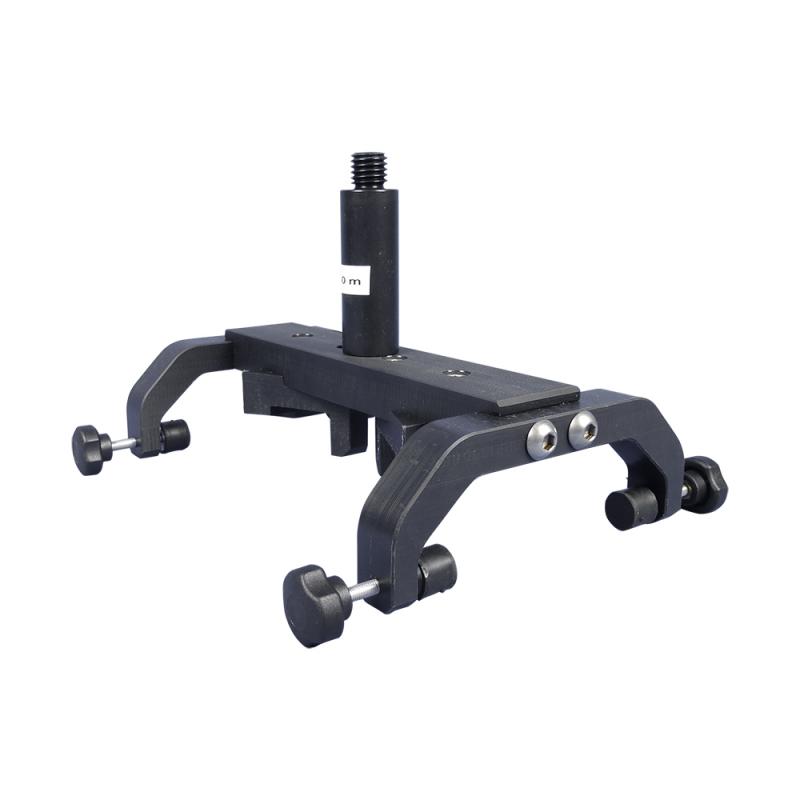

Coaxial bracket with 5/8" connection for Trimble TX5 and FARO Focus3D X.
The bracket is designed to be mounted on a Trimble TX5 or FARO Focus3d X laser scanner together with a reflective prism. The bracket allows the measurement of the position of the gripping point at the scanner during the scanning process. This way, subsequent classic topographic operations for merging the scans made in sequence are nearly avoided.
Product characteristics:
Low weight of the bracket (0.45kg)
A prism can easily be screwed on the bracket
dimensions: 23 x 17 x 6,5 cm (9.06 x 6.69 x 2.56 in)
material: plastic material with high density and resistance
Realized and tailor-made following perfectly the shape of the instrument, the locking points are safe and non-destructive. We recommend that the total weight of the bracket and the prism should not exceed 1.0 kg
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
surveying
Compatible laser scanners:
Trimble TX5
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Delivery content:
1 coaxial bracket
The bracket is designed to be mounted on a Trimble TX5 or FARO Focus3d X laser scanner together with a reflective prism. The bracket allows the measurement of the position of the gripping point at the scanner during the scanning process. This way, subsequent classic topographic operations for merging the scans made in sequence are nearly avoided.
Product characteristics:
Low weight of the bracket (0.45kg)
A prism can easily be screwed on the bracket
dimensions: 23 x 17 x 6,5 cm (9.06 x 6.69 x 2.56 in)
material: plastic material with high density and resistance
Realized and tailor-made following perfectly the shape of the instrument, the locking points are safe and non-destructive. We recommend that the total weight of the bracket and the prism should not exceed 1.0 kg
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
surveying
Compatible laser scanners:
Trimble TX5
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Delivery content:
1 coaxial bracket
