Bracket for positioning a prism on a FARO Focus S X or FARO Focus M laser scanner.
Coaxial mount with 5/8" adapter as add-on for FARO FocusS and FocusM series scanners.
Simplify your scanning workflow! The bracket enables the positioning of a prism mirror exactly above the rotation mirror. Thus the position of the scanner can be determined exactly with the help of a total station.
Product characteristics:
Low weight of the bracket (0.75kg)
The bracket has a 5/8" female thread. Additionally, 2 adapters are supplied, that means 2 additional connections: 5/8" external thread and a Leica plug.
Prisms can easily be screwed/plugged onto the bracket.
Dimensions: 23 x 17 x 6.5cm (9.06 x 6.69 x 2.56 in)
Material: Aluminum
Thanks to the custom-made design that perfectly fits the shape of the scanner, the latch is reliable and does not damage the device. However, we recommend that the total weight of the bracket and prism should not exceed 1.0kg.
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
surveying
Compatible laser scanners:
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70

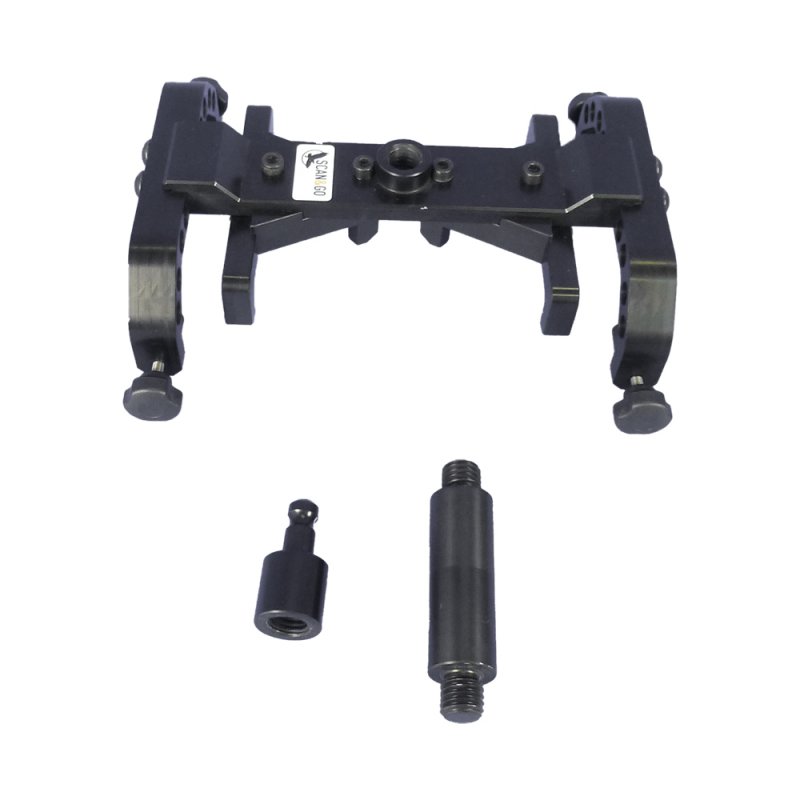

Delivery content:
1 coaxial bracket
1 adapter 5/8" male thread to 5/8" male thread
1 adapter 5/8" female thread to Leica plug
Product weight:0,50 Kg
