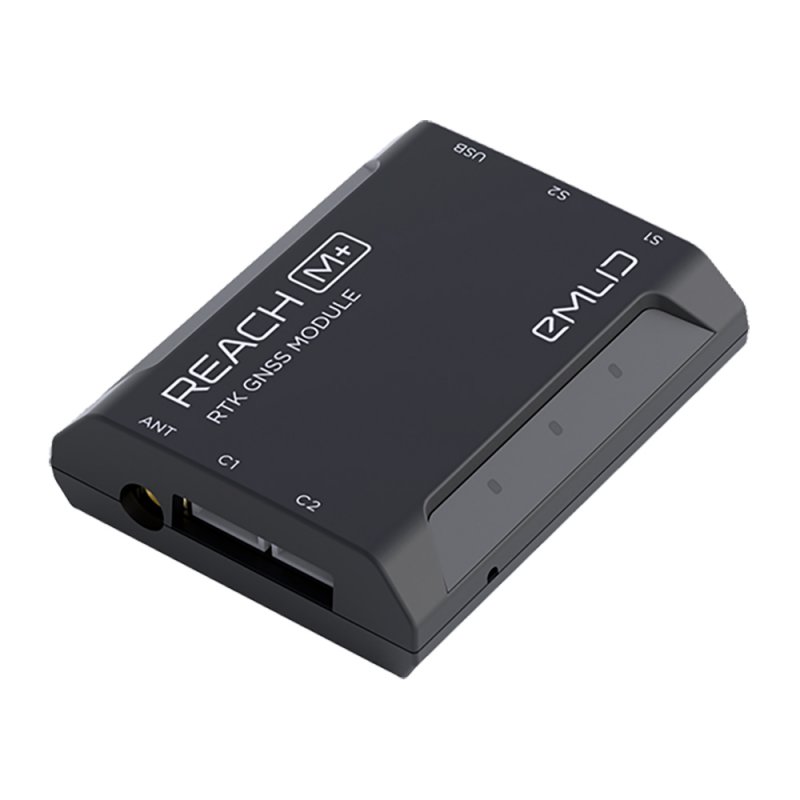

EMLID Reach M+ RTK GNSS module

Reach M+ is a GNSS module that is particularly suitable for drone surveying (UAV). With the help of the 20g light module, you can easily stitch together your photogrammetric drone recordings, with fewer ground control points required. In contrast to the Reach M2, the Reach M+ can only be operated with smaller baselines and fewer frequencies.

The GNSS module eliminates delays in image acquisition until GPS measurement by the hot shoe, which is directly connected to the shutter release. Ground control points are only required to verify accuracy. Like all other EMLID products, the M+ is easily controlled via an app. All logs and events are recorded automatically; the download is then possible.

product properties

Control via smartphone app (iOS and Android) or web interface
Receive various GNSS signals (72 channels in total):
GPS/QZSS L1
GLONASS G1
BeiDou B1
Galileo E1
SBAS
14Hz* GPS / 5Hz GNSS positioning rates
Internal memory 8GB
Input voltage on USB and JST GH 4.75V - 5.5V
DC Bias Antenna 3.3V
Average consumption at 5V: 200mA
Long-range radio connection with a range of up to 8 km
Working with medium-length baselines possible:
RTK up to 10 km
PPC up to 20 km
Fix solution in approx. 1-2 min
Dimensions: 56.4 x 45.3 x 14.6mm
Weight: 20g
Accuracy:
Static: H: 5mm + 1ppm | V: 10mm + 2ppm
Kinematic: H: 7 mm + 1 ppm | V: 14mm + 2ppm
Correction input: NTRIP, RTCM3
Position output: NMEA, LLH/XYZ
scope of delivery

Reach M+
USB cable
USB to Micro USB Adapter
JST-GH 6 pin cable with jumper pin
JST-GH 5 pin cable with jumper pin
