EMLID Reach M2 UAV-RTK-Kit

The Reach M2 UAV RTK Kit is the ideal kit to make navigating your drone footage more precise. The Reach M2 GNSS module receives correction data from the Reach RS2 over LoRa radio and relays centimeter-level coordinates to the drone's autopilot. This kit can also be used in other applications where mobile GNSS receivers need to be very compact.

Product Features Reach RS2

Control via smartphone app (iOS and Android), web interface or data collection apps
Establish WiFi and Bluetooth connections
Reaches various positioning providers (with update rates up to 10 Hz):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Precise Point Positioning (PPP) – Precise measurements anywhere in the world
Integrated 3.5G modem (use with Nano SIM)
Battery life up to 22 h (rechargeable via USB-C via mains or power bank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Staking mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA format
Use as a rover or base
LoRa up to 8 km (long range communication between base and rover)
Maximum ranges to the base:
60km in RTK
100km in PPC
8 through PPP
Correction input and output through TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 format
IP67 protected
Temperature resistant from -20°C to 65°C
shockproof case
Dimensions: 128x142mm
Weight: 950g
Internal memory 16GB
Accuracy:
Static: H: 4 mm + 0.5 ppm | V: 8mm + 1ppm
PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
RTK: H: 7mm + 1ppm | V: 14mm + 1ppm
Product Features Reach M2

Control via smartphone app (iOS and Android) or web interface
Receive various GNSS signals (184 channels in total):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
20 Hz* GPS / 10 Hz GNSS positioning rates (*with future firmware update)
Internal memory 16GB
Input voltage on USB and JST GH 4.75V - 5.5V
DC Bias Antenna 3.3V
Average consumption at 5V: 200mA
Long-range radio connection with a range of up to 8 km
Working with long baselines possible:
RTK up to 60 km
PPC up to 100 km
Fix solution in about 5 seconds
Dimensions: 56.4 x 45.3 x 14.6mm
Weight: 20g
Accuracy:
Static: H: 4 mm + 0.5 ppm | V: 8mm + 1ppm
Kinematic: H: 7 mm + 1 ppm | V: 14mm + 1ppm
Correction input: NTRIP, RTCM3
Position output: NMEA, LLH/XYZ

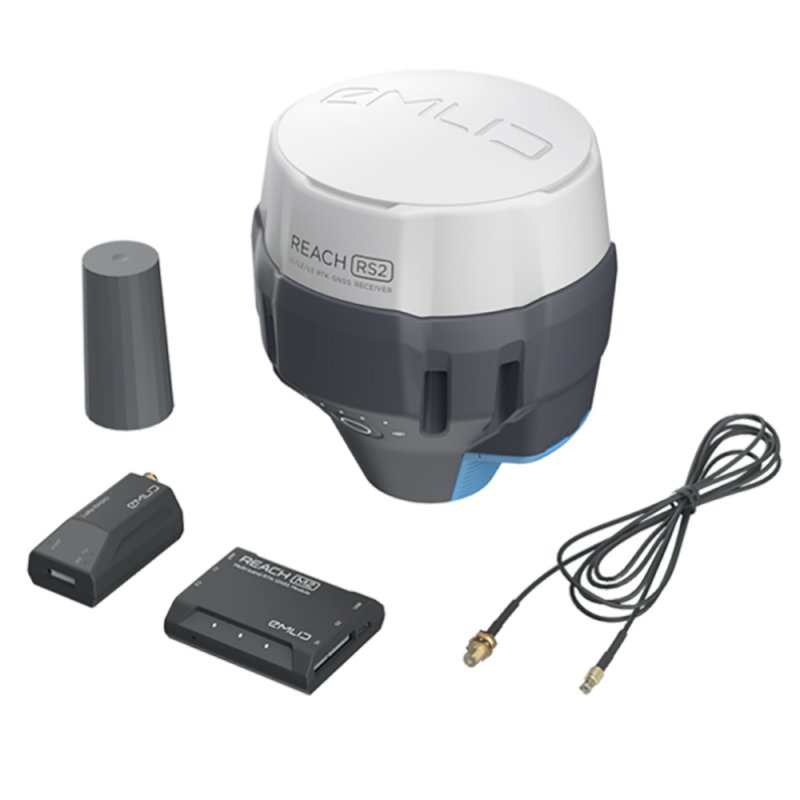

scope of delivery

ReachRS2
Reach M2
Multi-band GNSS antenna
Reach M+/M2 SMA antenna adapter cable 0.5 m
Reach M+/M2 LoRa radio
Carrying bag with shoulder strap
2x radio antenna
USB-C charging cable
Micro USB cable
JST-GH 6 pin cable with jumper pin
JST-GH 5 pin cable with jumper pin
