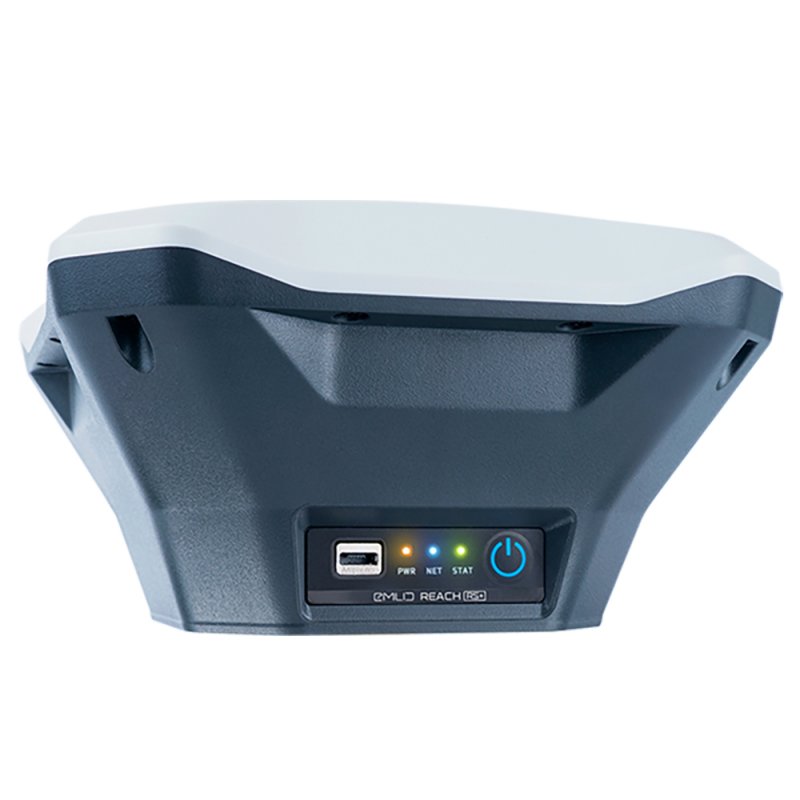

The GNSS measuring device Reach RS+ is the smart compact solution from EMLID. The Reach RS+ offers many options for carrying out your GNSS measurements. For example, you can choose between RTK, PPK or static measurements. The measuring device can also be controlled via field computer, laptop, tablet or smartphone.
The advantages of the Reach RS+ include long battery life, user-friendly controls, compact design and good positioning accuracy. It is the perfect device for both beginners and experienced users. The biggest advantage, however, is the price, which is only a fraction of the competing products.
product properties
Control via smartphone app (iOS and Android), web interface or data collection apps
Establish WiFi and Bluetooth connections
Achieves various positioning providers (positioning rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 14 Hz (GPS only)):
GPS/QZSS: L1C/A
GPS/QZSS: L1C/AGLONASS: L10F
Galileo: E1
BeiDou (COMPASS): B1
SBAS
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Battery life up to 30 h (rechargeable via USB-C via mains or power bank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Staking mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA format
Use as a rover or base
LoRa up to 8 km (long range communication between base and rover)
Maximum ranges to the base:
10km in RTK
20 km in PPC
Correction input and output through TCP, LoRa, Bluetooth, RS-232, NTRIP in RTCM3 format
IP67 protected
Temperature resistant from -20°C to 65°C
shockproof case
Dimensions: 145mm x 145mm x 85mm
Weight: 0.69 kg including internal battery
Internal memory 8GB
Accuracy:
Static: H: 5mm + 1ppm | V: 10mm + 2ppm
PPK: H: 7mm + 1ppm | V: 14mm + 2ppm
RTK: H: 7mm + 1ppm | V: 14mm + 2ppm
scope of delivery
ReachRS+
Carrying bag with shoulder strap
LoRa radio antenna
Adapter for GNSS survey poles
Micro USB charging cable
