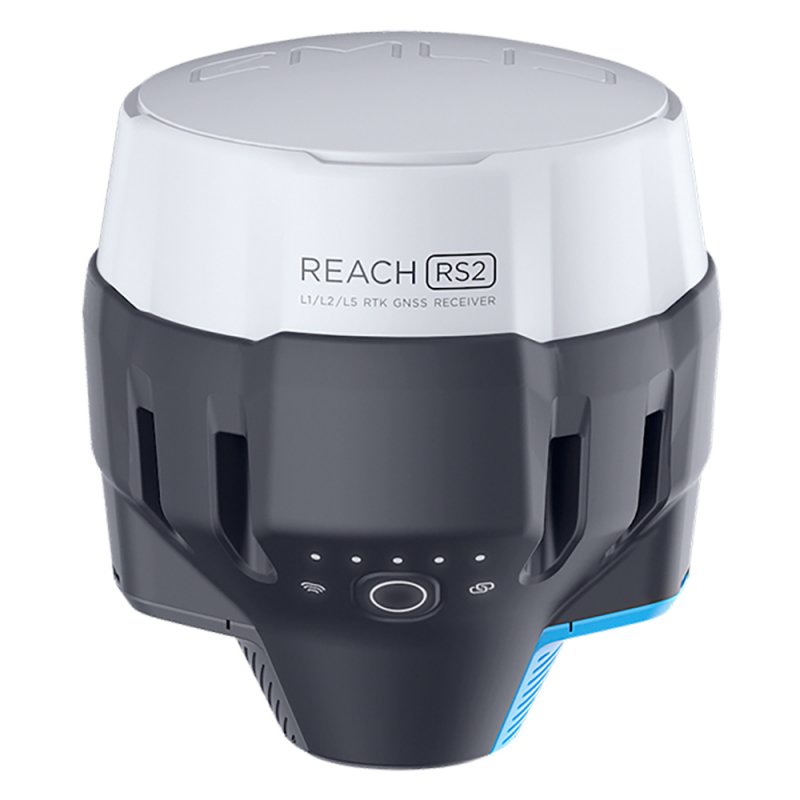

The GNSS measuring device Reach RS2 is the smart compact solution from EMLID. It offers many ways to carry out your GNSS measurements: RTK by SIM card or WiFi hotspot, PPK or static measurements - control via field computer, laptop, tablet or smartphone - the Reach RS2 offers maximum flexibility.
The Reach RS2 has a number of advantages, including long battery life, user-friendly controls, compact design and high positioning accuracy. It is ideal for beginners as well as experienced users. The biggest advantage, however, is the price, which is only a fraction of the competing products.
The survey kit includes two Reach RS2 receivers. These can then be used in parallel as a rover or as a rover and base.
product properties
Control via smartphone app (iOS and Android), web interface or data collection apps
Establish WiFi and Bluetooth connections
Reaches various positioning providers (with update rates up to 10 Hz):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Precise Point Positioning (PPP) – Precise measurements anywhere in the world
Integrated 3.5G modem (use with Nano SIM)
Battery life up to 22 h (rechargeable via USB-C via mains or power bank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Staking mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA format
Use as a rover or base
LoRa up to 8 km (long range communication between base and rover)
Maximum ranges to the base:
60km in RTK
100km in PPC
8 through PPP
Correction input and output through TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 format
IP67 protected
Temperature resistant from -20°C to 65°C
shockproof case
Dimensions: 128x142mm
Weight: 950g
Internal memory 16GB
Accuracy:
Static: H: 4 mm + 0.5 ppm | V: 8mm + 1ppm
PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
RTK: H: 7mm + 1ppm | V: 14mm + 1ppm
scope of delivery
2x Reach RS2 multi-band GNSS receivers
2x carrying bag with shoulder strap
2x long range radio antenna
2x USB-C charging cables
The Reach RS2 has a number of advantages, including long battery life, user-friendly controls, compact design and high positioning accuracy. It is ideal for beginners as well as experienced users. The biggest advantage, however, is the price, which is only a fraction of the competing products.
The survey kit includes two Reach RS2 receivers. These can then be used in parallel as a rover or as a rover and base.
product properties
Control via smartphone app (iOS and Android), web interface or data collection apps
Establish WiFi and Bluetooth connections
Reaches various positioning providers (with update rates up to 10 Hz):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Precise Point Positioning (PPP) – Precise measurements anywhere in the world
Integrated 3.5G modem (use with Nano SIM)
Battery life up to 22 h (rechargeable via USB-C via mains or power bank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Staking mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA format
Use as a rover or base
LoRa up to 8 km (long range communication between base and rover)
Maximum ranges to the base:
60km in RTK
100km in PPC
8 through PPP
Correction input and output through TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 format
IP67 protected
Temperature resistant from -20°C to 65°C
shockproof case
Dimensions: 128x142mm
Weight: 950g
Internal memory 16GB
Accuracy:
Static: H: 4 mm + 0.5 ppm | V: 8mm + 1ppm
PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
RTK: H: 7mm + 1ppm | V: 14mm + 1ppm
scope of delivery
2x Reach RS2 multi-band GNSS receivers
2x carrying bag with shoulder strap
2x long range radio antenna
2x USB-C charging cables
