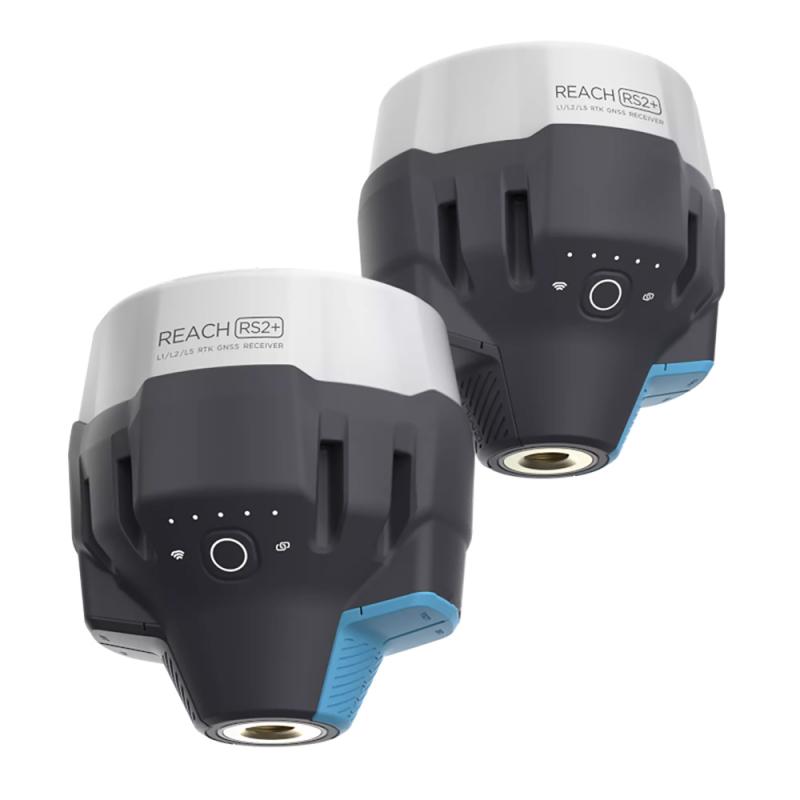

The new RS2+ from Emlid is the successor model of the RS2 and has a 4G modem. The GNSS receiver allows you to perform the measurement in different ways: RTK through SIM card or WiFi hotspot, PPK or static measurements – control via field computer, laptop, tablet or smartphone – the Reach RS2+ offers maximum flexibility.
The GNSS receiver is easy to use and can be easily mounted on a GPS pole. Furthermore, it is resistant to shock and can be used in temperatures ranging from -20°C to 65°C. Also with its price, the Reach RS2+ is optimal for entry level.
The survey kit includes two Reach RS2+ receivers. These can then be used in parallel as a Rover or as a Rover and Base.
Product characteristics
Supports multiple positioning Providers (with update rates up to 10 Hz):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Precise Point Positioning (PPP) – Precise measurements anywhere in the world
Integrated 4G modem (use with Nano SIM)
Battery life up to 22 hours (rechargeable via USB-C over mains or Powerbank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Positioning mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA Format
Use as Rover or Base
LoRa up to 8km (long range communication between Base and Rover)
Maximum ranges to Base:
60km in RTK
100km in PPK
8 through PPP
Correction input and output via TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 Format
IP67 protected
Temperature resistant from -20°C to 65°C
Shock resistant case
Dimensions: 128mm x 142mm
Weight: 950g
Internal memory: 16 GB
Accuracies:
Static: H: 4mm + 0.5ppm | V: 8mm + 1ppm
PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
RTK: H: 7mm + 1ppm | V: 14mm + 1ppm
Control via smartphone app (iOS and Android), web interface or data collection apps
Make WiFi and Bluetooth connections
The required Emlid Flow software can be downloaded for free from the App Store and Google Play.
Delivery content
2x Reach RS2 Multi-Band GNSS-Empfänger
2x carrying case with strap
2x LoRa antenna for RS2
2x charging cable USB-A to USB-C
The GNSS receiver is easy to use and can be easily mounted on a GPS pole. Furthermore, it is resistant to shock and can be used in temperatures ranging from -20°C to 65°C. Also with its price, the Reach RS2+ is optimal for entry level.
The survey kit includes two Reach RS2+ receivers. These can then be used in parallel as a Rover or as a Rover and Base.
Product characteristics
Supports multiple positioning Providers (with update rates up to 10 Hz):
GPS/QZSS L1C/A, L2C
GLONASS L1OF, L2OF
BeiDou B1I, B2I
Galileo E1-B/C, E5b
Fix solution in seconds
Post-processing through RINEX raw files (PPK)
Precise Point Positioning (PPP) – Precise measurements anywhere in the world
Integrated 4G modem (use with Nano SIM)
Battery life up to 22 hours (rechargeable via USB-C over mains or Powerbank)
Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
Positioning mode (import formats: CSV, DXF, GeoJSON)
Position streaming in NMEA Format
Use as Rover or Base
LoRa up to 8km (long range communication between Base and Rover)
Maximum ranges to Base:
60km in RTK
100km in PPK
8 through PPP
Correction input and output via TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 Format
IP67 protected
Temperature resistant from -20°C to 65°C
Shock resistant case
Dimensions: 128mm x 142mm
Weight: 950g
Internal memory: 16 GB
Accuracies:
Static: H: 4mm + 0.5ppm | V: 8mm + 1ppm
PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
RTK: H: 7mm + 1ppm | V: 14mm + 1ppm
Control via smartphone app (iOS and Android), web interface or data collection apps
Make WiFi and Bluetooth connections
The required Emlid Flow software can be downloaded for free from the App Store and Google Play.
Delivery content
2x Reach RS2 Multi-Band GNSS-Empfänger
2x carrying case with strap
2x LoRa antenna for RS2
2x charging cable USB-A to USB-C
