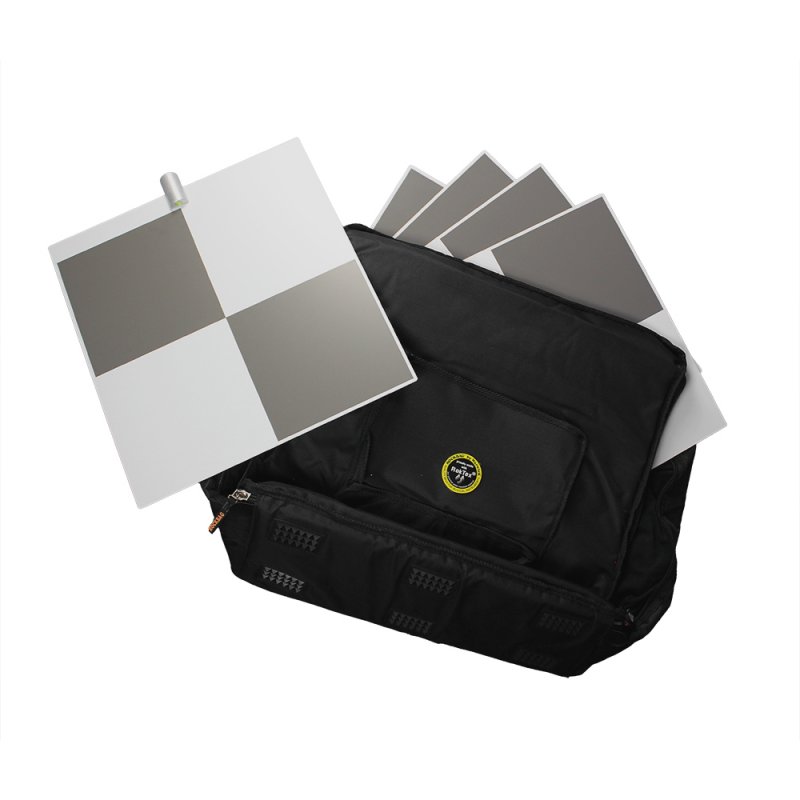

The set comes with 5 checkerboard targets, which fit neatly into the space-saving bag.
Universal: This checkerboard target can be used with both laser scanners and tachymeters (non-reflective).
Flexibility: Besides its compact dimensions ensuring easy handling, the checkerboard target is an ideal laser scanning companion due to its ability to measure long distances.
Product attributes:
torsion-stiff composite plates made of aluminum with low weight
remarkably even surfaces ensure excellent results
dimensions: 45 x 42 cm (17.7 x 16.5 in)
dimensions of the checkered pattern: 40 x 40 cm (7.9 x 7.9 in)
weather-resistant
integrated circular level
The axis of the checkered pattern is exactly situated in the axis of the connection. In the case of a level checkerboard target, the center of the checkerboard target is still unchanged in position and height when it pivots on the axis.
bag made of a padded water-repellent material
well-padded water-repellent bag
can be mounted on different tripods and fits onto various adapters (available for Leica plug, M8 + magnet, 1/4" and 5/8'')
Applications:
long distance measurements (up to 147 feet)
can be freely adjusted and positioned by use of a tripod and a claw system
Areas of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
Compatible laser scanners
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Trimble TX8
Leica HDS 4400/6100
Leica ScanStation P20/ P30/ P40
Teledyne Polaris
Tripod socket compatibility:
Leica plug (fixation is made with a horizontal knurled screw)
5/8'' for fixation onto tripods or other appropriate surveying accessories
1/4 inch for use on camera tripods
M8 thread + magnet: can be used with a LSE prism pole, a suction cup holder or simply with the magnets of our reference spheres
Further connection options are possible. Please contact us!
Scope of delivery:
5 x large laser scanner checkerboard targets
1 x bag for safe transport
Notes:
If you are experiencing problems in positioning and placing your targets, please contact us and benefit from our free advice.
Hints for registration in FARO Scene:
If you use pivoted checkerboard targets (orientation towards the scanner), you should deactivate the box “Use Checkerboard Normals” in the default setting of placement of scans in Scene Software. For more information, click here.
Synonyms: target board, laser scanner reference target, checkered pattern, target plate
Product weight:6,80 Kg
