Laser Scanner Prism reference sphere (100mm diameter)

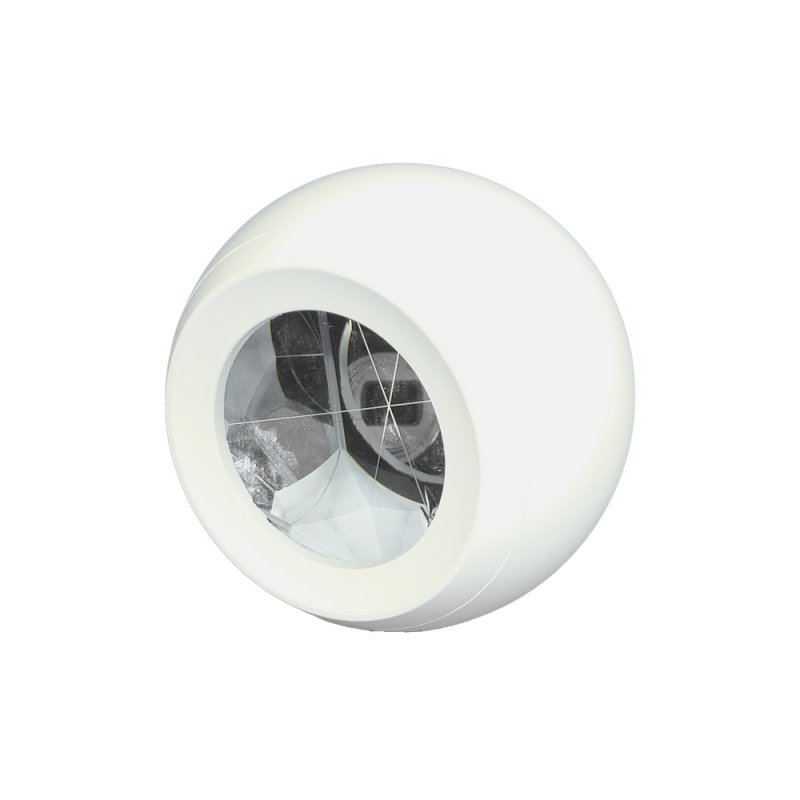

Reference sphere (100mm diameter) with integrated prism

The new plastic measurement sphere with integrated prism facilitates your surveying tasks enormously. Due to the combination of an extra precisely machined reference sphere and a prism mirror, laser scan data and tacheometric measurements can be linked quickly and straightforwardly.

Product characteristics

diameter of the sphere: 100mm (3.94 in)
weight: 0.55kg
A precisely integrated prism is located in the center of the sphere.
prism constant: -34.4mm (-1.35 in) / Leica: 0mm (0 in)
The spherical shape allows an optimum detection from all sides during scanning.
The reference sphere has a special varnish for optimum reflectivity.
Available with 5/8" female thread or male thread
Field of application

architecture, preservation of buildings and monuments
design and planning of factory buildings and digital factory
mining industry and tunnel construction
public service corporations
aircraft construction and naval architecture
foundries and steel industry
chemistry and process industry
Designated use

linkage of laser scan data and tacheometric data
Simultaneous scanning and measuring of the sphere's center is possible.
The prism sphere can be used as a prism for tacheometric measurements and as a reference sphere for laser scanning.
suited for use of permanently marked reference points which can optionally be determined by means of a total station
positioning on noted fixed points by means of a tripod or a prism pole and a fitting adapter
Compatible laser scanners

FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Leica HDS 6100
Leica HDS 4400
Z+F IMAGER 5010
Z+F IMAGER 5006
Z+F IMAGER 5006i
Z+F IMAGER 5006h
Z+F IMAGER 5006EX
Trimble TX5
Trimble TX8
Surphaser
Do you need an overview on Laserscanning Europe's reference spheres? Have a look at our guide to reference spheres.

Synonyms: reference ball, reference globe, measurement sphere, measuring sphere, scanning sphere, sphere, target mark, reference point, checkerboard, set of spheres, set of reference spheres, set of measurement spheres, set of measuring spheres, laser scanning, laser scanner reference sphere, mini prism, register mark, registration mark, mark, register tick, registration tick, tick, control point

Product weight:0,55 Kg
