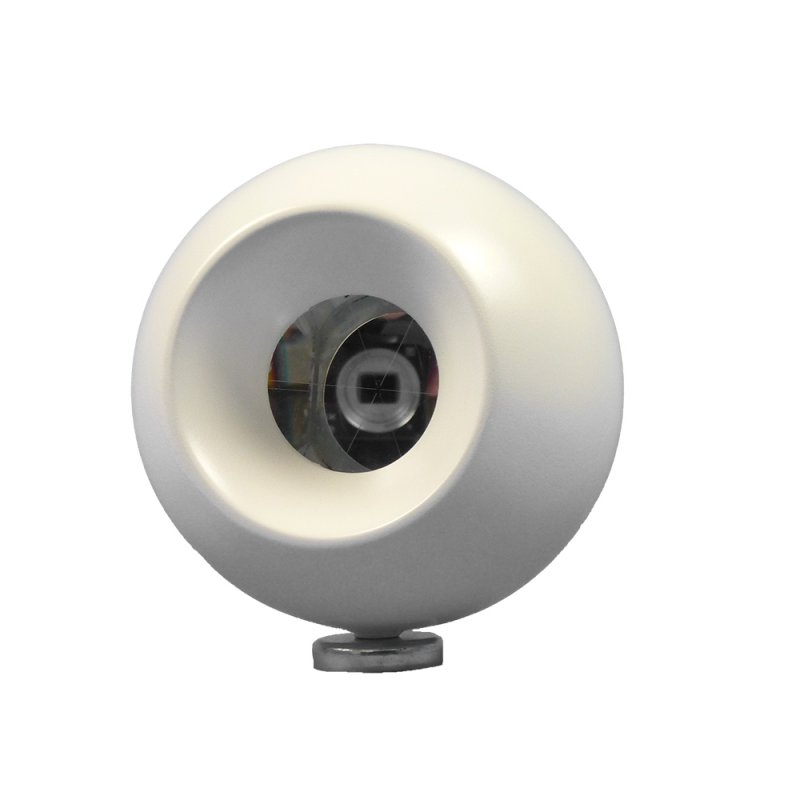

Reference sphere (145mm diameter) with integrated prism
Due to the plastic measurement sphere with integrated prism, you gain a maximum of flexibility. Due to the combination of an extra precisely machined reference sphere and a prism mirror in the sphere's center, laser scan data and tacheometric measurements can be linked quickly and straightforwardly. Since the sphere has the same diameter as our approved reference spheres, you can integrate the sphere into your laser scanning projects without any problems.
Product characteristics
diameter of the sphere: 145mm (5.71 in)
weight: 0.55kg
A precisely integrated prism is located in the center of the sphere.
prism constant: -34.4mm (-1.35 in) / Leica: 0mm (0 in)
The spherical shape allows an optimum detection from all sides during scanning.
The reference sphere has a special varnish for optimum reflectivity.
Contains a M8 female thread with a magnet screwed-in
Field of application
architecture, preservation of buildings and monuments
design and planning of factory buildings and digital factory
mining industry and tunnel construction
public service corporations
aircraft construction and naval architecture
foundries and steel industry
chemistry and process industry
Designated use
linkage of laser scan data and tacheometric data
Simultaneous scanning and measuring of the sphere's center is possible.
The prism sphere can be used as a prism for tacheometric measurements and as a reference sphere for laser scanning.
Usage together with reference spheres with 145mm diameter possible (Basic, Flexi, UltraX, Traveler) (full integration resulting from same diameter and same connection)
positioning on noted fixed points by means of a tripod or a prism pole and a fitting adapter
Compatible laser scanners
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Leica HDS 4400/ 6100
Leica ScanStation P20/ P30/ P40
Z+F IMAGER
GeoSLAM ZEB-HORIZON
GeoSLAM ZEB-REVO/ ZEB-REVO RT
GeoSLAM ZEB Discovery
Trimble TX5
Trimble TX8
Surphaser
Artec Ray
Teledyne Polaris
Riegl on request
Do you need an overview on Laserscanning Europe's reference spheres? Have a look at our guide to reference spheres.
Synonyms: reference ball, reference globe, measurement sphere, measuring sphere, scanning sphere, sphere, target mark, reference point, checkerboard, set of spheres, set of reference spheres, set of measurement spheres, set of measuring spheres, laser scanning, laser scanner reference sphere, mini prism, register mark, registration mark, mark, register tick, registration tick, tick, control point
Product weight:0,55 Kg
