Everything for 3D ScanningAccessoriesTarget Marks and Reference SpheresReference Spheres with Ø145mmLASER SCANNER REFERENCE SPHERE SET (FLEXI)
DescriptionDetails & specsAttachments
Our cutting edge sphere combines best quality and extreme durability. Quality: Made in Germany.
The reference sphere set Flexi has all product characteristics of the reference sphere set Basic and expands this one by the following characteristics:
Precise geometry - the high-precision geometry is particularly important in this sector and allows the use for highly accurate applications (e. g. stripe-light-scanners) beside the standard usage in the field of laser scanning
Unique materials - the sphere Flexi which is developed for daily use is made of unique material components
Integrated shock absorber - the first sphere that can withstand impacts and achieve the initial state after a few seconds
Excellent reflective properties - in contrast to our other reference spheres the surface is not painted; a special surface coating ensures optimum reflectivity and durability
Product characteristics:
Diameter of 145 mm
Resistant materials allow daily use and ensure durability
Integrated shock absorber assists in withstanding impacts and protects the surface coating (thus, chipping paint is a thing of the past)
Spherical shape allows the highest possible scanning efficiency from various directions and it has been proven to be the most effective laser scanning target
Long special adapter (female thread M8) for Mini Prism (item no.: 030-90023)
Reference sphere is a special model made of a combination of different plastics with special surface coating for optimum reflectivity
Optionally, we offer the tripod adapter for reference spheres (item no.: 030-50009) for attachment on tripods etc.
Includes detachable magnet base (M8/0.8 in)
Case dimensions: 575 x 470 x 205 mm

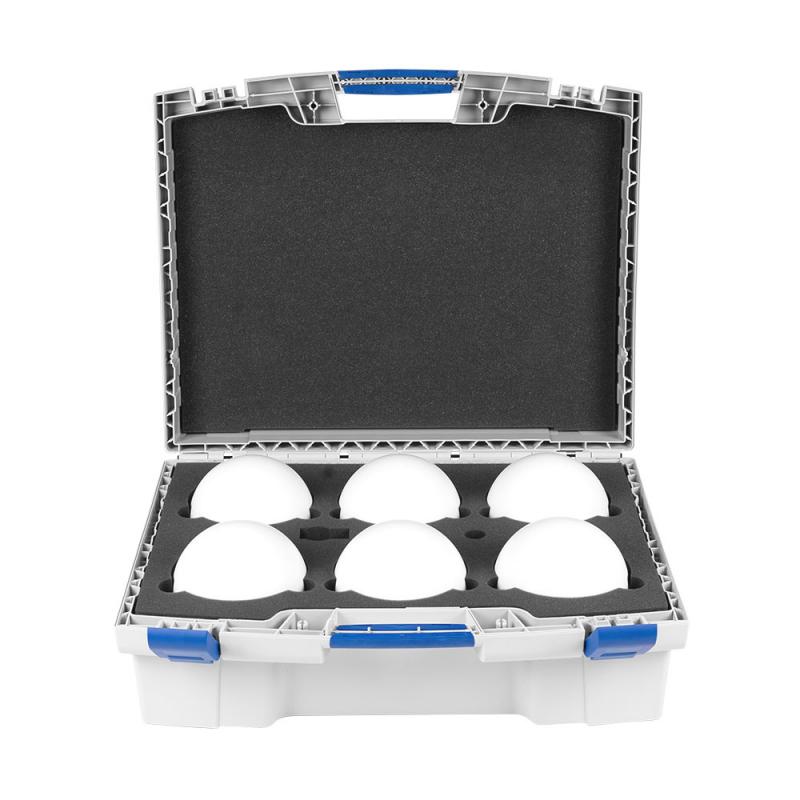

Case with precut foam insert for safe transport
suitable for operations in a temperature range from -40 to +75 degrees
Field of application:
Architecture, preservation of buildings and monuments
Design and planning of factory buildings and digital factory
Mining industry and tunnel construction
Public service corporations
Aircraft construction and naval architecture
Foundries and steel industry
Chemistry and process industry
Forensics
Compatible laser scanners:
FARO Focus Premium
FARO Focus Core
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
FARO Focus3D S 120
Trimble X7
Trimble TX5
Trimble TX8
Leica RTC360
Leica BLK360
Leica HDS 4400/ 6100
Leica ScanStation P20/ P30/ P40
Z+F IMAGER
GeoSLAM ZEB-HORIZON
GeoSLAM ZEB-REVO/ ZEB-REVO RT
GeoSLAM ZEB Discovery
Surphaser
Artec Ray
Teledyne Polaris
Riegl on request
Notes:
The reference sphere Flexi is not only very solid due to the integrated shock absorber but can be used easily at various weather conditions.
The reference sphere set Flexi has all product characteristics of the reference sphere set Basic and expands this one by the following characteristics:
Precise geometry - the high-precision geometry is particularly important in this sector and allows the use for highly accurate applications (e. g. stripe-light-scanners) beside the standard usage in the field of laser scanning
Unique materials - the sphere Flexi which is developed for daily use is made of unique material components
Integrated shock absorber - the first sphere that can withstand impacts and achieve the initial state after a few seconds
Excellent reflective properties - in contrast to our other reference spheres the surface is not painted; a special surface coating ensures optimum reflectivity and durability
Product characteristics:
Diameter of 145 mm
Resistant materials allow daily use and ensure durability
Integrated shock absorber assists in withstanding impacts and protects the surface coating (thus, chipping paint is a thing of the past)
Spherical shape allows the highest possible scanning efficiency from various directions and it has been proven to be the most effective laser scanning target
Long special adapter (female thread M8) for Mini Prism (item no.: 030-90023)
Reference sphere is a special model made of a combination of different plastics with special surface coating for optimum reflectivity
Optionally, we offer the tripod adapter for reference spheres (item no.: 030-50009) for attachment on tripods etc.
Includes detachable magnet base (M8/0.8 in)
Case dimensions: 575 x 470 x 205 mm
Case with precut foam insert for safe transport
suitable for operations in a temperature range from -40 to +75 degrees
Field of application:
Architecture, preservation of buildings and monuments
Design and planning of factory buildings and digital factory
Mining industry and tunnel construction
Public service corporations
Aircraft construction and naval architecture
Foundries and steel industry
Chemistry and process industry
Forensics
Compatible laser scanners:
FARO Focus Premium
FARO Focus Core
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
FARO Focus3D S 120
Trimble X7
Trimble TX5
Trimble TX8
Leica RTC360
Leica BLK360
Leica HDS 4400/ 6100
Leica ScanStation P20/ P30/ P40
Z+F IMAGER
GeoSLAM ZEB-HORIZON
GeoSLAM ZEB-REVO/ ZEB-REVO RT
GeoSLAM ZEB Discovery
Surphaser
Artec Ray
Teledyne Polaris
Riegl on request
Notes:
The reference sphere Flexi is not only very solid due to the integrated shock absorber but can be used easily at various weather conditions.
