Laser Scanner Reference Sphere Set XXL with 3 spheres

Set consisting of three big reference spheres (200mm diameter)

The laser scanner reference sphere set with three XXL spheres is a good choice for your laser scanning projects. The big diameter of the sphere allows the highest possible scanning efficiency with wide ranges from various directions. The XXL reference sphere has been proven to be a very effective laser scanning target. In addition, it is very flexible as the magnet can be detached from the reference sphere. Quality: Made in Germany.

Product characteristics:

diameter Ø 200 mm (7.87 in)
adapter: female thread M8
reference sphere is a hollow made of plastic with a distinctive surface to achieve excellent reflective properties
includes detachable magnet base (M8)
case dimensions: 575 x 470 x 270 mm (22.4 x 18.5 x 10.6 in)
case with precut foam insert for safe transport
suitable for operations in a temperature range from -40 to +75 degrees
Designated use:

The reference sphere XXL is used for objects with great dimensions. You can position this sphere in a distance that is about 2/3 farther away than it is possible with traditional spheres.
Easy and quick attachment to magnetic surfaces due to a centered magnet base.
Connection of point cloud with existing fixed points by using reference sphere adapters.
Field of application:

scan object with great target ranges, e. g. for a site plan, or as a permanently visible master sphere during the scanning of big buildings or halls
Compatible laser scanners:

FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Leica RTC360
Leica BLK360
Leica HDS 4400/ 6100
Leica ScanStation P20/ P30/ P40
Trimble TX5
Z+F IMAGER
GeoSLAM ZEB-HORIZON
GeoSLAM ZEB-REVO/ ZEB-REVO RT
GeoSLAM ZEB Discovery
Surphaser
Artec Ray
Teledyne Polaris
Riegl on request
Compatible adapters:

tripod adapter for reference sphere (200mm)
set consisting of 3 tripod adapters for reference spheres (200mm)
prism pole adapter for reference spheres XXL (200mm)

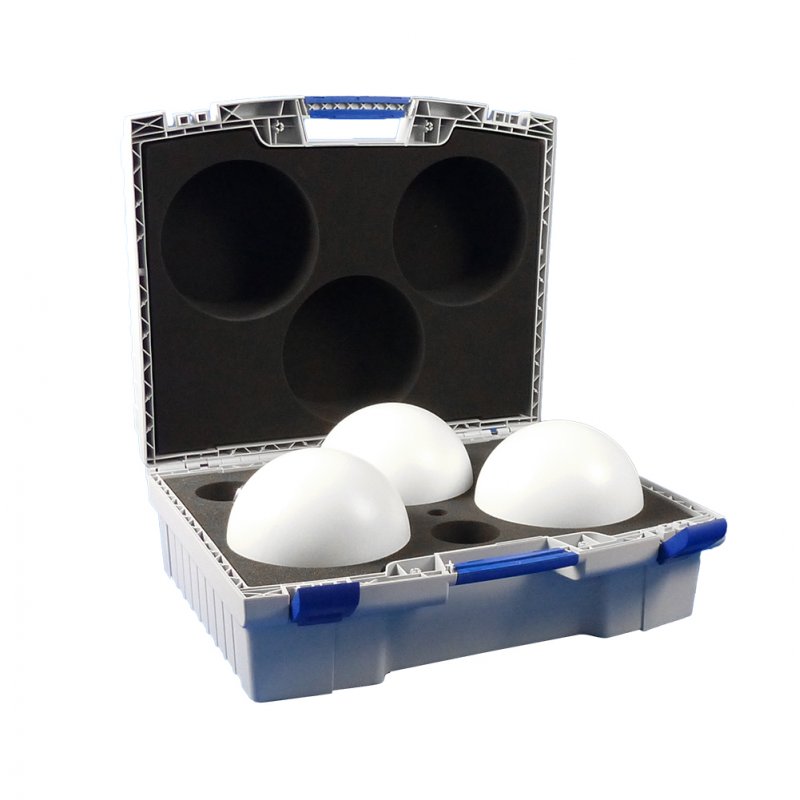

Delivery contents:

3 XXL reference spheres plastic Ø 200 mm, special adapter with female thread M8
3 long magnet holders (M8)
1 plastic case with foam insert for spheres
Notes:

Due to the material properties and the production process, minor imperfections may occur in the surface of the sphere, but these do not affect the stability and function of the reference sphere. It is only an optical fault.
Use our stickers to permanently mark your reference and control points (for several passes, resurveys, control surveys, etc.).
Choose the suitable adapter for your total station in addition to the XXL reference spheres.

Do you need an overview on Laserscanning Europe's reference spheres? Have a look at our guide to reference spheres.


Synonyms: target, scan sphere, reference target, control point, point of reference, reference point, reference sphere set, laser scanner target sphere set, laser scanner reference sphere set, laser scanner target sphere, laser scanner reference sphere, reference ball, target ball, ground control point, GCP

Product weight:10,00 Kg
