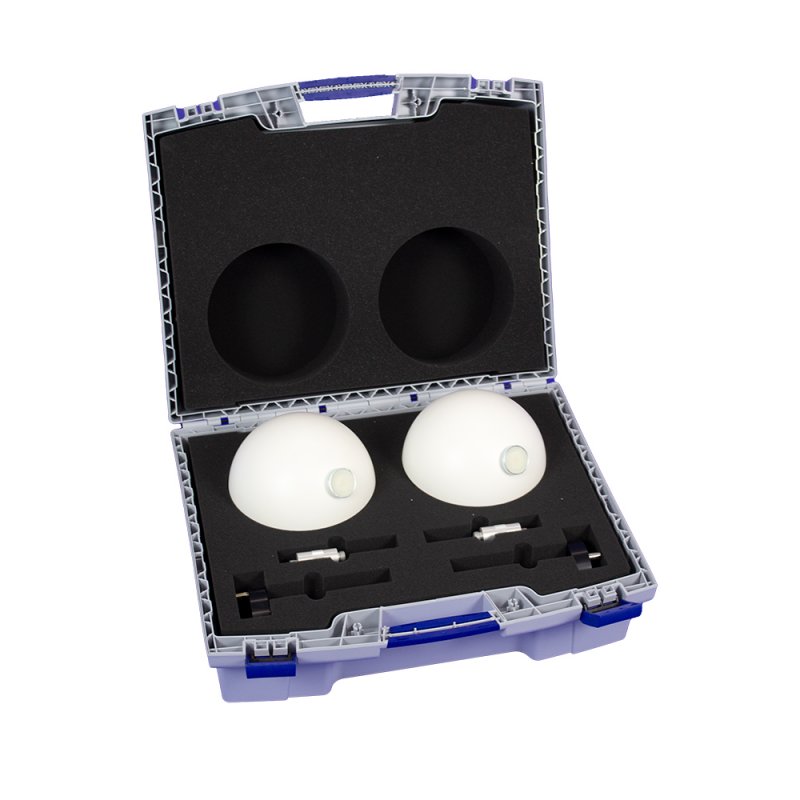

Set consisting of two big reference spheres (200mm diameter). Make up your case XXL individually according to your needs!
Order two reference spheres XXL with the appropriate accessories together in one case! Even in long scan distances, the big reference spheres can be registered very well. With the appropriate accessories, you are well equipped for all scanning jobs.
Product characteristics:
reference sphere is a hollow made of plastic with a distinctive surface to achieve excellent reflective properties
diameter of reference sphere: Ø 200 mm/7.9 in
connection: female thread M8/20 mm (0.78 in)
includes strong detachable magnet base (M8/20 mm(0.78 in))
magnet base can be replaced by a reference sphere adapter or a prism pole adapter
The adapters are safely and space-savingly placed directly into the provided recesses in the foam insert.
case dimensions: 575 x 470 x 270 mm (22.4 x 18.5 x 10.6 in)
case with precut foam insert for safe transport
Designated use:
The reference sphere XXL is used for objects with great dimensions. You can position this sphere in a distance that is about 2/3 farther away than it is possible with traditional spheres.
Easy and quick installation on magnetic surfaces due to a centered magnet base.
Connection of point cloud with existing fixed points by using reference sphere adapters.
Field of application:
scan object with great target ranges, e. g. for a site plan
Compatible laser scanners:
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Leica RTC360
Leica BLK360
Leica HDS 4400/ 6100
Leica ScanStation P20/ P30/ P40
Z+F IMAGER
GeoSLAM ZEB-HORIZON
GeoSLAM ZEB-REVO/ ZEB-REVO RT
GeoSLAM ZEB Discovery
Surphaser
Artec Ray
Teledyne Polaris
Riegl on request
Delivery contents:
2 reference spheres XXL, plastic, Ø 200 mm (7.9 in), special adapter (female thread M8, 20 mm/7.9 in)
2 long magnet bases (M8/20 mm (0.78 in))
1 plastic case with foam insert
Optionl delivery contents:
One or two Tripod adapter for reference sphere (200 mm/7.9 in sphere)
One or two Prism pole adapter 5/8 inch for reference spheres XXL (200 mm/7.9 in)
Notes:
Due to the material properties and the production process, minor imperfections may occur in the surface of the sphere, but these do not affect the stability and function of the reference sphere. It is only an optical fault.
Use our stickers to permanently mark your reference and control points (for several passes, resurveys, control surveys, etc.).
You have to set the radius of the sphere manually in your registration software. If you have any questions, please contact us!
Do you need an overview on Laserscanning Europe's reference spheres? Have a look at our guide to reference spheres.
Product weight:9,00 Kg
