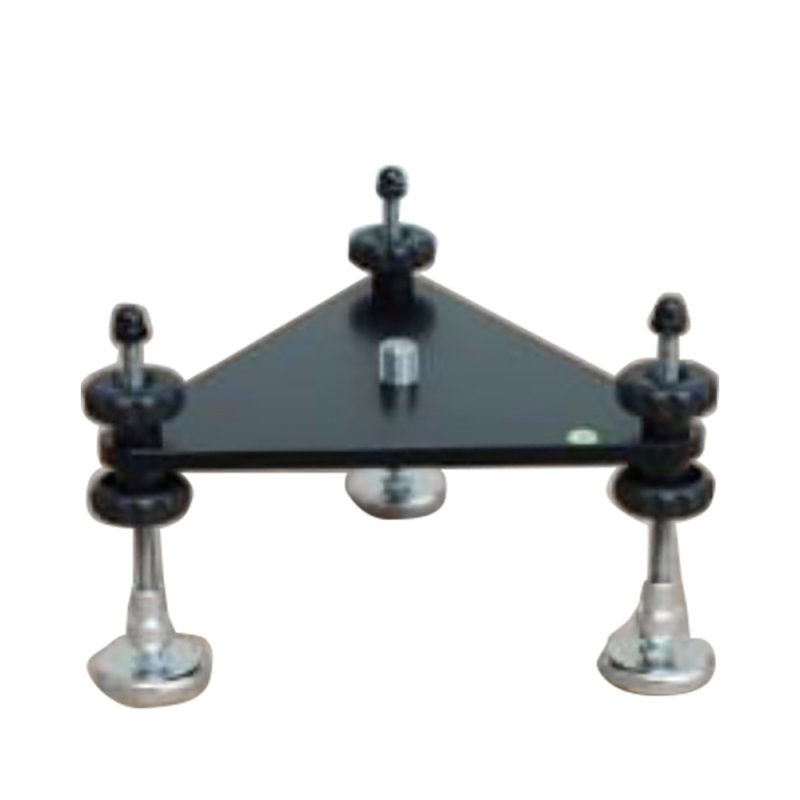

Magnetic level bracket

Magnetic bracket for positioning and leveling on the hood; for attaching a target

With the help of this magnetic mount you can place a target on the hood of a vehicle. Manually level the magnetic mount so that it forms a horizontal surface and the target is optimally aligned with it.

In combination with a target, a 3D laser scanner mounted on the leveling platform and GPS receivers, you can determine the position of the laser scanner. Simply place the target on the leveled magnetic mount using a GPS receiver. The GPS receiver is used to orientate the scans.

Purpose of use:

Use in combination with the Scan&Go system
for attaching a target
Many outdoor scanning positions have to be managed; Scanning positions can be reached with a motor vehicle
Scanning terrain, roads, topography, facades, high-voltage lines, etc.
Product features:

for placement and leveling on the hood
three round magnets (load capacity: 60 kg each) on articulated feet to adapt to the body shape
three adjustable threaded rods for vertical alignment (adjustable by max. 15 cm)
an aluminum plate with bubble level for leveling, with 5/8 inch connector for screwing an adapter for a target with GPS system
Areas of application:

Architecture, construction and preservation of monuments
mining and tunneling
terrain survey
Scope of delivery:

1 magnetic mount

Magnetic mount - Technical sheet

Product weight: 0.50 kg
