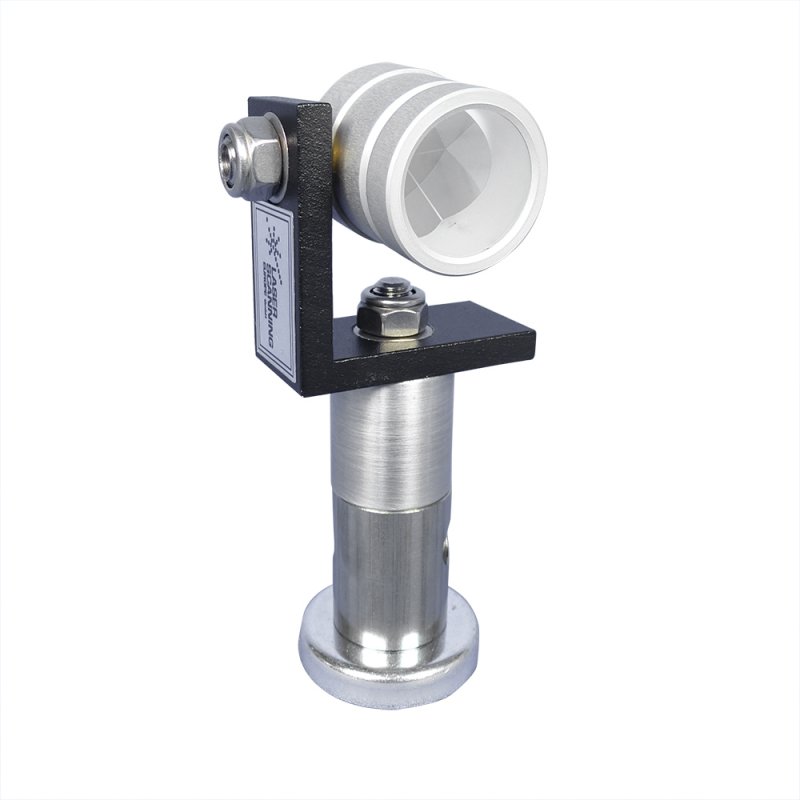

Mini prism for laser scanner reference sphere XXL (diameter. 200mm (7.87 in))
Flexible: laser scanner positions can easily be determined within a local or global frame of reference/coordinate system
Very accurate: best possible results due to the use of a total station or a tachymeter
Do you need very accurate results at wide scan ranges (up to 35m (1377.95 in))? Or are you required to transfer the scanned object into an existing coordinate system? In either case, you will want to use a mini prism. The center of the mini prism equals that of our reference spheres XXL. Consequently, a fast and accurate survey of the reference spheres is possible without any problems. Use our reference stickers to easily and accurately position and install the reference sphere and the mini prism.
Product characteristics:
prism constant: -34.4mm (-1.35 in) / Leica: 0mm (0 in)
height of the tilting axis: 100mm (3.94 in); due to the height of the mini prism, the center of the XXL sphere can be surveyed precisely
forced centering because the prism will be screwed onto a threaded bolt (M8) or mounted onto the magnetic base of our reference spheres
Designated use:
surveying the reference spheres XXL (200mm (7.87 in)) with a total station
surveying the center of the XXL spheres with a size of 200mm (7.87 in) to achieve highly accurate results
determining the position of the scanned object within the context of an existing coordinate system, e.g. halls, plants, areas
By means of the mini prism, you determine the coordinate required for your registration directly.
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
Compatibility:
all types of tachymeters that support a prism constant of -34.4 mm (-1.35 in) (mini prism round)
Laser scanner reference sphere set XXL
Delivery contents:
1 mini prism incl. a magnetic holder (M8/20mm (0.79 in))
Notes:
particularly suitable for laser-scanning projects that must be linked to an existing coordinate system/reference system
In complex laser-scanner projects, measuring the centre of the sphere increases the accuracy of the registration.
Offset and eccentric measurements are a thing of the past.
Use our stickers to permanently mark your reference and control points. That way, you will be able to accurately position and install the reference sphere as well as the mini prism for your surveying tasks.
Do you want to know how to successfully use 3D reference stickers, reference spheres, and mini prisms? Check it out here:
>Laser Scanning TV: Laser Scanner Accessories Video
Synonyms: mini prism, prism, prism for surveying, surveying prism, survey prism, reflector, prism reflector
Product weight:0,50 Kg
Flexible: laser scanner positions can easily be determined within a local or global frame of reference/coordinate system
Very accurate: best possible results due to the use of a total station or a tachymeter
Do you need very accurate results at wide scan ranges (up to 35m (1377.95 in))? Or are you required to transfer the scanned object into an existing coordinate system? In either case, you will want to use a mini prism. The center of the mini prism equals that of our reference spheres XXL. Consequently, a fast and accurate survey of the reference spheres is possible without any problems. Use our reference stickers to easily and accurately position and install the reference sphere and the mini prism.
Product characteristics:
prism constant: -34.4mm (-1.35 in) / Leica: 0mm (0 in)
height of the tilting axis: 100mm (3.94 in); due to the height of the mini prism, the center of the XXL sphere can be surveyed precisely
forced centering because the prism will be screwed onto a threaded bolt (M8) or mounted onto the magnetic base of our reference spheres
Designated use:
surveying the reference spheres XXL (200mm (7.87 in)) with a total station
surveying the center of the XXL spheres with a size of 200mm (7.87 in) to achieve highly accurate results
determining the position of the scanned object within the context of an existing coordinate system, e.g. halls, plants, areas
By means of the mini prism, you determine the coordinate required for your registration directly.
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
Compatibility:
all types of tachymeters that support a prism constant of -34.4 mm (-1.35 in) (mini prism round)
Laser scanner reference sphere set XXL
Delivery contents:
1 mini prism incl. a magnetic holder (M8/20mm (0.79 in))
Notes:
particularly suitable for laser-scanning projects that must be linked to an existing coordinate system/reference system
In complex laser-scanner projects, measuring the centre of the sphere increases the accuracy of the registration.
Offset and eccentric measurements are a thing of the past.
Use our stickers to permanently mark your reference and control points. That way, you will be able to accurately position and install the reference sphere as well as the mini prism for your surveying tasks.
Do you want to know how to successfully use 3D reference stickers, reference spheres, and mini prisms? Check it out here:
>Laser Scanning TV: Laser Scanner Accessories Video
Synonyms: mini prism, prism, prism for surveying, surveying prism, survey prism, reflector, prism reflector
Product weight:0,50 Kg
