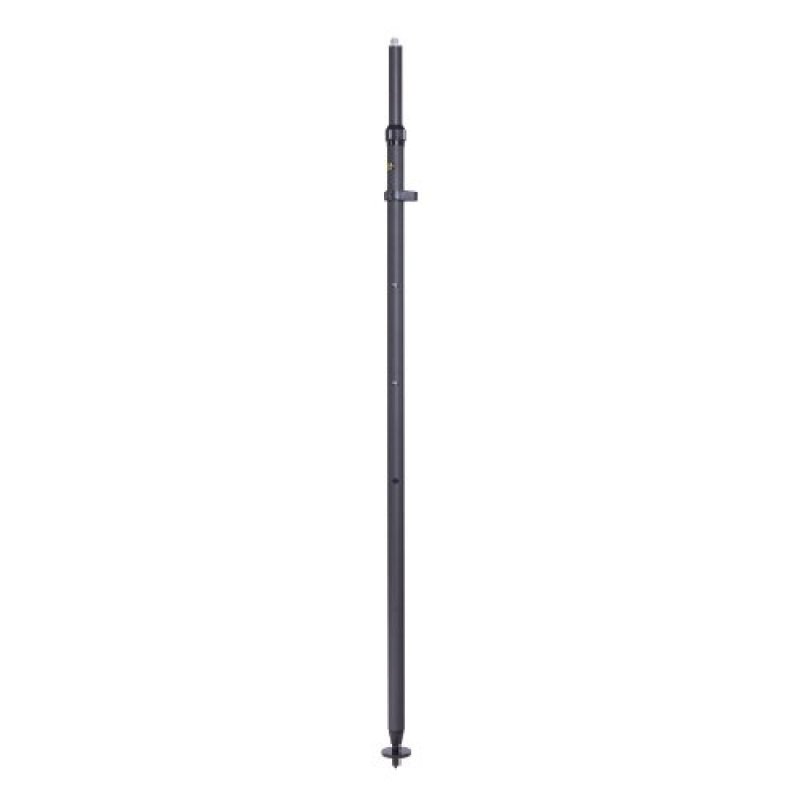

NESTLE Carbon GNSS pole, PG-5

The required accuracy in data collection presupposes the use of a professional plummet pole. The carbon rods from NESTLE impress with their light weight, durability and convenient handling. Rod with triple locking latch (160cm, 180cm, 200cm). PG-5 with screwable sand plate.

Designated use

For all kinds of GNSS measurements.
Key features

Carbon for pleasant work, even at low temperatures.
Carbon outer and inner tube – comfortable handling even at low temperatures.
The tip does not wear out - thus no falsification of the measurements by blunt tips.
Long outer tube for ergonomic work.
Convenient to transport and clean.
Product characteristics

Tip made of hard metal steel.
The pole is telescopic with locking at 1.60m, 1.80m, 2.00m.
For ergonomic work, both poles habe a outer tube with 132cm, so you can mount field computers in a comfortable working height.
The screwable sand plate prevents the sinking of the pole during surveying and stakeouts. Can be used for exact centering e.g. be screwed upside down to the tip.
Clamping: Screw
Diameter: Outer tube 32mm, inner tube 25mm
Working range: Locking at 1.60m / 1.80m / 2.00m
Transport length: 134cm
Weight: 730g
Connection: 5/8"
Special feature: Carbon-carbon, telescopic, triple locking latch
Delivery content

NESTLE GNSS pole (PG-5), with screwable sand plate


Product weight:0,74 Kg
