NESTLE GNPS-52 ALL-IN-ONE SET
In stock

NESTLE GNPS-52 ALL-IN-ONE SET

Product code 859
€0 EUR€4 900 EUR
DescriptionDetails & specsAttachments
The GNPS-52 (Global NESTLE Positioning System) satellite positioning system is used for real-time RTK positioning for capturing and marking out points and geometric shapes. Thanks to its user-friendly design, this system is easy to learn and guarantees a standard accuracy of 1cm, which meets the requirements of the market. The device is also less susceptible to interference than its predecessor, the GNPS-42.

The integration of an advanced helical antenna in the NESTLE GNPS-52 enables the use of innovative technologies. The simultaneous use of four satellite systems (GPS, GLONASS, BEIDOU, GALILEO) ensures smooth surveying. The NESTLE on2go application enables you to work intuitively and without specialist knowledge in the field of surveying. There are no more annual maintenance costs.

Particularly worth highlighting is the rapid operational readiness of the complete system (activation and immediate start of measurement with on2go) and its low weight of just 1.5kg. The system can be installed in less than 90 seconds: Simply extend the rod, attach the tablet and connect via Bluetooth. There is no need to plug in cables, which means that the GNPS-52 is ready for use even more quickly.
Designated use

RTK satellite surveying
Construction surveying
Staking outs
Point surveys
Topography, terrain, pipelines
Documentation
Planning and monitoring
Length, area and volume measurements
Product characteristics

Extremely lightweight (1.5kg as a complete system ready for Operation)
Working height Helix antenna: 2m
GNSS tracking: GPS, Glonass, Galileo, Beidou
Operating temperature: -20°C to +60°C
Weather resistant
IP protection class: antenna IP67, field computer IP68
Accuracy (RTK fixed): 10mm +1ppm
Battery life: antenna 10 hours, field computer 15 hours
1408 antenna channels
Rod: extendable carbon rod 2m, 20` bubble level
Fieldsoftware: NESTLE on2go permanent

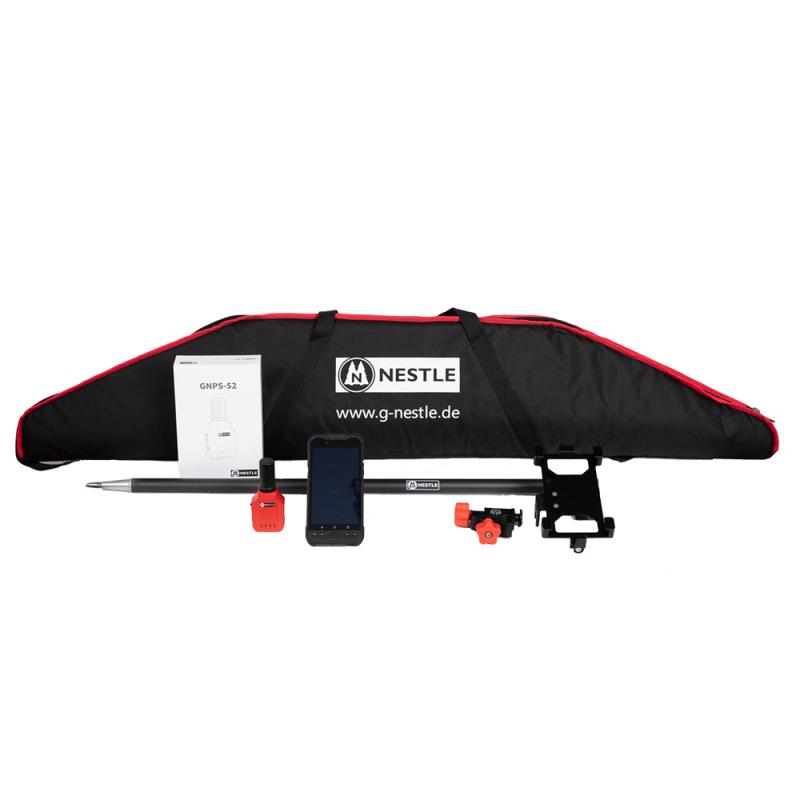

Delivery content

GNPS-52 antenna
Cable and charger for antenna
Antenna rod with bubble level
Height adapter with 5/8" internal thread
NC-6 field computer with Li-Ion battery
Charging power supply and cable for NC-6
Mounting bracket for field computer
Rod holder H2C for mounting bracket
NESTLE on2go field software permanent
QR code for operating instructions
Transport bag
Please note

For undisturbed reception of the satellite signals, sufficient "sky visibility" is required, which means that satellite surveys can only take place outdoors.
In addition to the undisturbed reception of the signals of at least 5 satellites, you also need the data of a correction data service (registration required). The data of this service is sent to your position via WLAN or mobile network and processed in the Nestle on2go software.
In order to achieve the specified accuracy, correction data from a correction data service is mandatory. Extra costs may apply for this Service.
