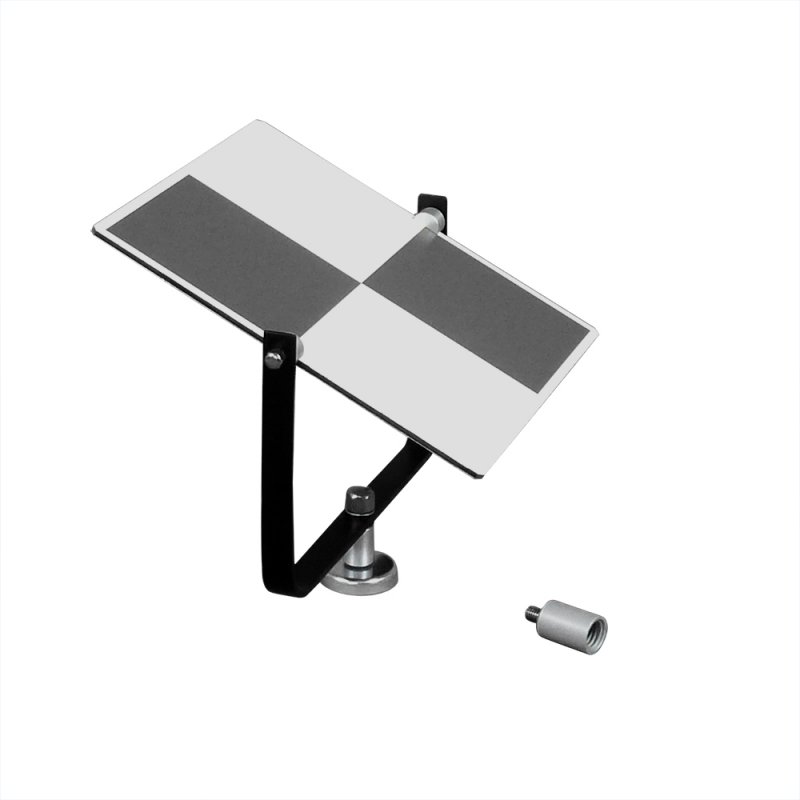

Swiveling checkered pattern; dimensions: 21 x 21cm (8.3 x 8.3 in), with magnet base and 5/8" adapter
The flexible laser scanning checkerboard target can be pivoted almost 360 degrees by means of two rotational axes and, thus, you can always align it exactly to the scanner.
You can attach the checkerboard target to metallic surfaces by means of the magnet base or you install the target plate on a tripod using the delivered 5/8" adapter.
Product characteristics:
torsion-stiff plates with low weight
weather-resistant
remarkably even surfaces ensure excellent results
dimensions of the plate: 21 x 21cm (8.3 x 8.3 in)
dimensions of the checkered pattern: 20 x 20 cm (7.9 x 7.9 in)
weight without magnet/adapter: 0.2kg
frame made of carbon for minimum weight and maximum robustness
As standard, the checkerboard target is delivered with a M8 connection including a screwed-in magnet base. Furthermore, an adapter is delivered for usage of the checkerboard together with a 5/8" connection.
In combination with a universal tribrach adapter, the checkerboard can be used for positive centering with a claw system.When used together with the tribrach adapter, the checkerboard's center has a standard tilting axis height of 196mm (7.7 in).
The center of the checkered pattern is exactly situated in the horizontal and vertical rotational axis of the checkerboard. The center of the checkerboard target is still unchanged in position and height when it pivots on the axis.
intended use at surrounding temperatures up to 60°C
Designated use:
registration mark visible up to 25m (984.3 in)
can be positioned flexibly and adjusted arbitrarily by use of a tripod a prism pole or the magnet base
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
Compatible laser scanners
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Trimble TX8
Leica HDS 4400/6100
Leica ScanStation P20/ P30/ P40
Teledyne Polaris
Delivery contents:
1 x pivoted laser scanner checkerboard target with M8 connection
1x screwed-in magnet base
1x adapter from M8 to 5/8"
Hints for registration in FARO Scene:
If you use pivoted checkerboard targets (orientation towards the scanner), you should deactivate the box “Use Checkerboard Normals” in the default setting of placement of scans in Scene Software. For more information, click here.
Product weight:0,40 Kg
The flexible laser scanning checkerboard target can be pivoted almost 360 degrees by means of two rotational axes and, thus, you can always align it exactly to the scanner.
You can attach the checkerboard target to metallic surfaces by means of the magnet base or you install the target plate on a tripod using the delivered 5/8" adapter.
Product characteristics:
torsion-stiff plates with low weight
weather-resistant
remarkably even surfaces ensure excellent results
dimensions of the plate: 21 x 21cm (8.3 x 8.3 in)
dimensions of the checkered pattern: 20 x 20 cm (7.9 x 7.9 in)
weight without magnet/adapter: 0.2kg
frame made of carbon for minimum weight and maximum robustness
As standard, the checkerboard target is delivered with a M8 connection including a screwed-in magnet base. Furthermore, an adapter is delivered for usage of the checkerboard together with a 5/8" connection.
In combination with a universal tribrach adapter, the checkerboard can be used for positive centering with a claw system.When used together with the tribrach adapter, the checkerboard's center has a standard tilting axis height of 196mm (7.7 in).
The center of the checkered pattern is exactly situated in the horizontal and vertical rotational axis of the checkerboard. The center of the checkerboard target is still unchanged in position and height when it pivots on the axis.
intended use at surrounding temperatures up to 60°C
Designated use:
registration mark visible up to 25m (984.3 in)
can be positioned flexibly and adjusted arbitrarily by use of a tripod a prism pole or the magnet base
Field of application:
architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
Compatible laser scanners
FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Trimble TX8
Leica HDS 4400/6100
Leica ScanStation P20/ P30/ P40
Teledyne Polaris
Delivery contents:
1 x pivoted laser scanner checkerboard target with M8 connection
1x screwed-in magnet base
1x adapter from M8 to 5/8"
Hints for registration in FARO Scene:
If you use pivoted checkerboard targets (orientation towards the scanner), you should deactivate the box “Use Checkerboard Normals” in the default setting of placement of scans in Scene Software. For more information, click here.
Product weight:0,40 Kg
