Pole mount for reference marks

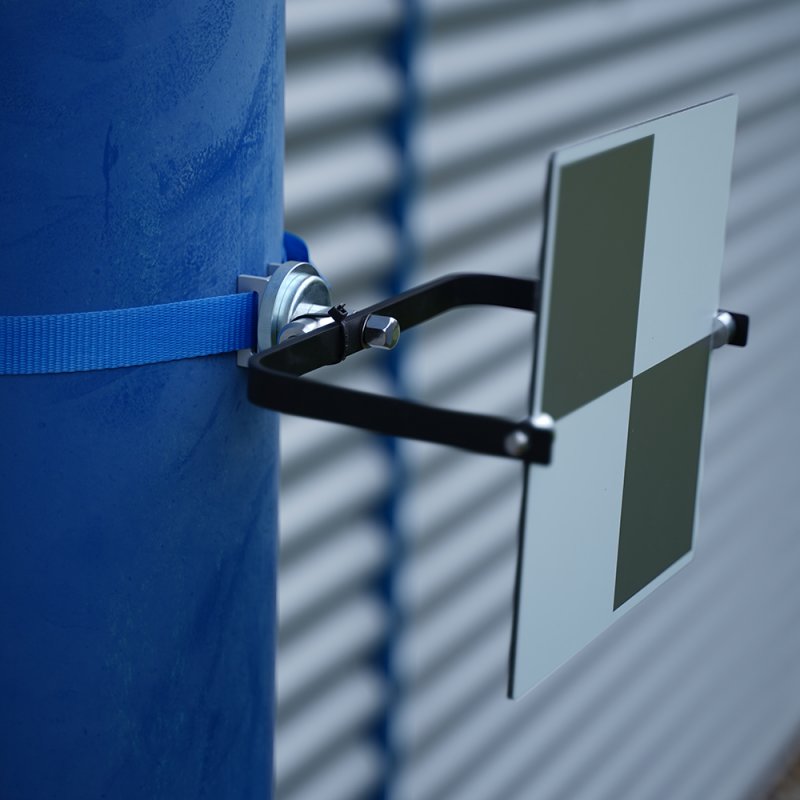

The pole mount is specially designed for use with surveying accessories with magnetic base. The bracket can be easily and quickly attached to pipes, trees or cables using the lashing strap. A precision measuring point disk for 40mm diameter magnets is used as a seating, allowing you to attach our reference spheres, checkerboard targets or mini prisms.

Product characteristics

Length of lashing strap: 1,000mm
Maximum diameter for pole: 318mm
Minimum diameter for pole: 35mm
Lashing capacity: 400 daN
Elongation of the lashing strap: <5%
Precision measuring point disk as a mounting base, with a centering of 40mm diameter
Material of the precision measuring point disk: steel, galvanized
Dimensions of the base: 40mm x 30mm x 15mm
U section of the base: height: 12mm, width: 24mm
Designated use

Attachment to pipes, cables, trees, poles, street lamps and delineators
Use as a support for surveying accessories with magnetic base
For indoor and outdoor use
Fields of application

Architecture, construction and modeling
Energy companies and utilities
Factory and plant construction
Aircraft construction and shipbuilding
Crime scene and accident analysis
Compatibility

Surveying accessories with magnetic base Ø 40mm (e.g. reference spheres, checkerboard targets)
Accessories for total stations
Terrestrial scanners
Handheld 3D scanners
Small-range scanners
Delivery content

Pole mount with lashing strap
Note

When attaching the mount to sensitive surfaces, we recommend placing something underneath to prevent scratches on the Surface.
