Quick Release for Laser Scanner Carbon Tripod for FARO Focus

With the quick release, you can assemble and disassemble your laser scanner FARO Focus or Artec Ray even faster.
Realize your laser scanning project even faster. With the quick release, you can easily and quickly fasten the laser scanner FARO Focus or Artec Ray to the carbon tripod - and you can disassemble it just as quick. For that purpose, a pan head is screwed on the tripod, a moving head disk on the scanner. The laser scanner can quickly be put in the pan head and then clamped. Moreover, the quick release treats the horizontal drive of your laser scanner with care and is recommended by its manufacturer.

Designated use:

You have to deal with many scan positions.
You have to realize your laser scanning project immediately.
Product characteristics - Pan head:

for mounting on the tripod
length: 111 mm
width: 70 mm
height: 37 mm
weight: 0.35 kg
maximum load: 8 kg
spirit level
3/8 inch female thread
Scale from 0° to 360°
Product characteristics - Moving head disk:

for mounting on the laser scanner
treats the horizontal drive of your laser scanner with care
length: 70 mm
width: 38 mm
height: 10 mm
thread: 3/8 inch
weight: 43 g
fixed support due to rubberized material
Compatible laser scanner:

FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5 dank 3/8-Zoll-Anschluss
Artec Ray
Compatible tripod:

For tripods with 3/8 inch connection, e. g. Laser Scanner Carbon Tripod for FARO Focus
Delivery contents:

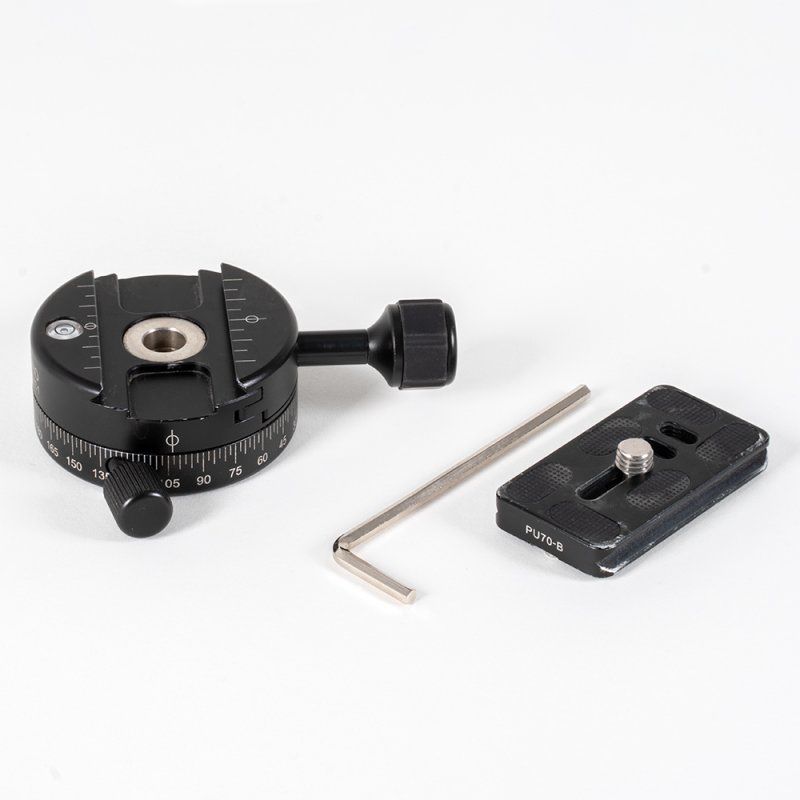

1 quick release consisting of a pan head and a moving head disk
appropriate screws
Product weight:0,40 Kg
