REFERENCE OBJECTS FOR HANDHELD SCANNERS

Has your hand-operated scanner ever lost his bearings during scanning since the object to be scanned has had too less surface structure? Simply use reference objects for such objects. Using our reference objects for handheld scanners, you make scanning easier due to additional structure. Quality: Made in Germany.

Product characteristics:

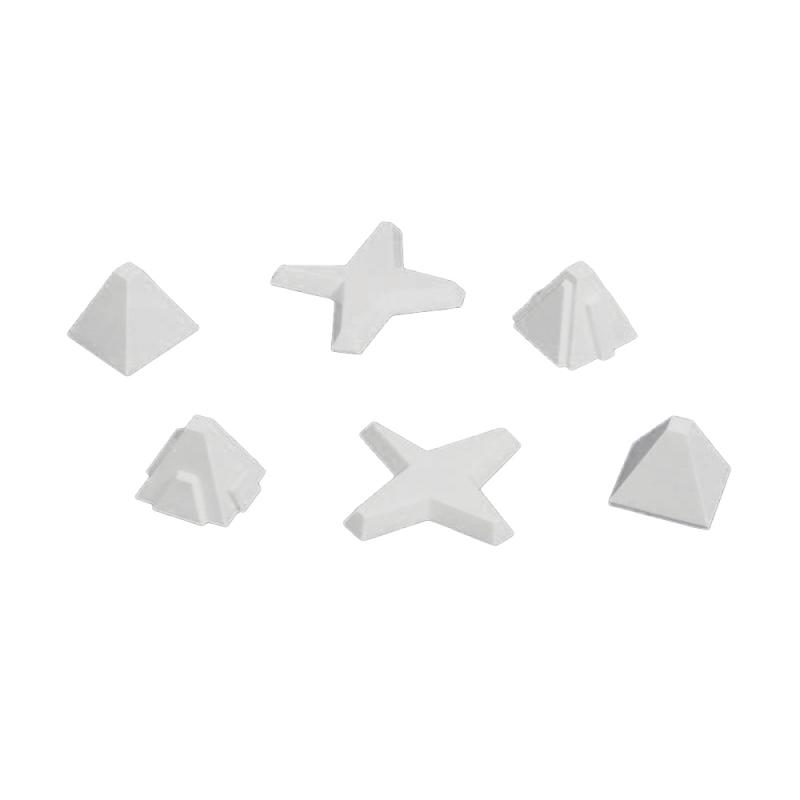

3 differently shaped reference objects made of sturdy material:
a frustum of a pyramid (5 x 4 x 4cm / 1,97 x 1.57 x 1,57 in)
a frustum of a pyramid with different side contours (5 x 5 x 4cm / 1,97 x 1,97 x 1,57 in)
an irregularly shaped star (10 x 10 x 1cm / 3,94 x 3,94 x 0.39 in)
The base of the reference objects includes a magnet.
Due to the 2mm (0.08 in) high base of each object, there will be a gap in the point cloud. As a result, a clear differentiation between reference object and scanning object will be possible; the point cloud can be cleared in the aftermath.
Designated use:

Attachment to metal surfaces or for positioning
Compatible handheld scanners:

Artec EVA/ Artec Eva Lite
Artec Spider
Suited for all handheld scanners with object detection via surface structure
Delivery contents:

3 x 2 reference objects in a practical fabric bag
