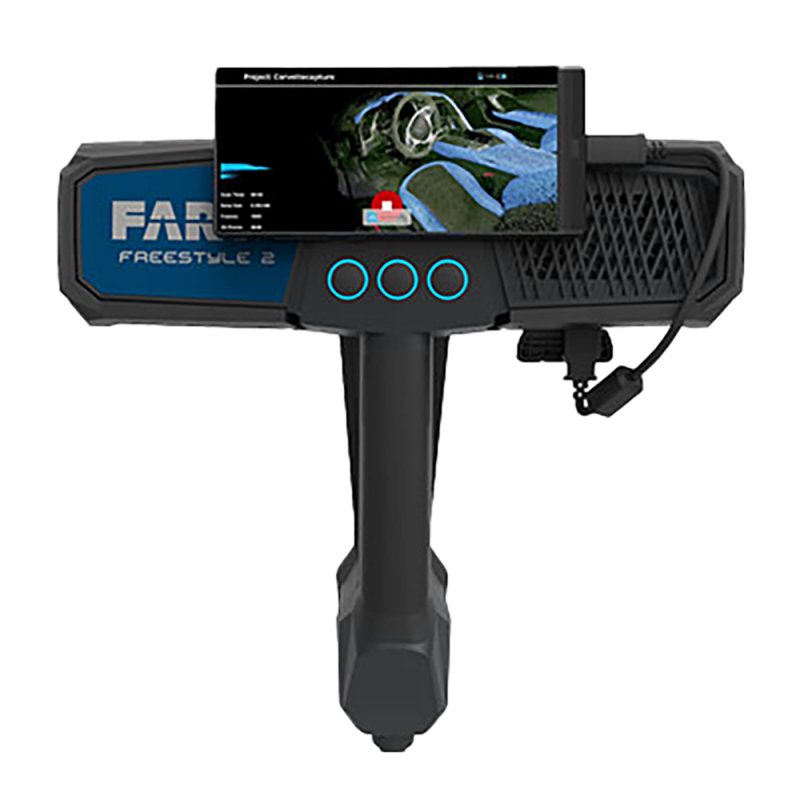

Rent the handheld scanner for 3D documentation at a reasonable price
Do you already have scan results created with FARO Focus laser scanner and you want to add detailed information you cannot capture with the terrestrial Focus scammer in hard to reach or narrow areas? Or are you looking for a portable device enabling you to completely capture a complex object or a crime scene in the shortest possible time? Simply rent FARO Freestyle 2 from us at a reasonable price. The rental offer is a perfect solution if you want to test the device before purchase or if the acquisition of the scanner doesn't pay off because of unique or rare use.
With FARO Freestyle 2, you can capture almost any surface type in color and document it three-dimensionally. Due to the intuitive user interface and the easy handling, you don't need any experience for operating the handheld scanner.
Principle
To document in 3D, simply point the hand-operated scanner Freestyle 2 to objects and surroundings from different angles. Since the already captured scan area is visualized on the smartphone in real time, you can follow the scan progress. Thus, you can check the completeness of your data even when scanning hard to reach areas. You also benefit from maximum flexibility thanks to one-handed operation.
Content of rental offer
3D scanner with high-end Android smartphone
Product characteristics
Range: 0.4 – 5m (up to 10m with limited data quality)
Identifiable feature: up to 0.2mm
3D point accuracy: = 0.5mm
Long range accuracy:
0.5mm at 1m distance
5mm at 5m distance
15mm at 10m distance
Single image point density:
Up to 45,000 points/m² in 0.5m distance
Up to 10,500 points/m² in 1m distance
Acquisition Rate: Up to 220,000 points/s, point cloud density increases with time
Typical Noise:
0.3mm @ 0.4m distance
0.75mm @ 1m distance
10mm @ 3m distance
35mm @ 5m distance
100mm @ 10m distance
Lighting conditions: Full daylight, 10,000-45,000 lux (reduced performance in direct sunlight)
Light source: Integrated LED flash
Scan volume: 39.5m³ @ max range 5m
Typical field of view (HxW)
420mm x 550mm @ 0.5m
930mm x 1170mm @ 1m
1800mm x 2160mm @ 2m
2740mm x 3160mm @ 3m
3600mm x 4160mm @ 4m
4470mm x 5150mm @ 5m
Exposure time: 0.1ms - 7ms (autoexposure)
Texture color: 24 bit
Dimensions: 285mm x 256mm x 130mm
Connectivity: HDMI, USB 3.0, WiFi
Weight: 1.48kg
IP rating: IP 52
Compensation: Onsite – with supplied compensation plate
Operating temperature range: 0 – 40 °C
Operating humidity range: Non-condensing
Eye Safety: Class 1 Laser
Wavelength: 798 – 816nm
Data sheet
Mobile PC Specifications
Microsoft Windows 10 Pro, 64-Bit Intel® Core™ i7
256GB hard disc with 16 GB RAM
HDMI; USB 3.0 ports; WiFi
Field of application
Architecture, Engineering & Construction (AEC)
Facility management
Documentation of interior
Restoration & conservation
Virtual Reality
Oil & gas
Forensics & law enforcement
Accident reconstruction
Rental content
FARO Freestyle 2 sensor
Mobile PC
Belt and shoulder strap
Onsite calibration plate
Magnet kit for smartphone
USB cable
1 battery
Charger
Hightspeed USB stick
Targets kit
Cleaning kit
Quick guide
Rugged case
Android smartphone
Please note:
The software FARO Scene is required for data analysis. You can rent the software from us for an additional charge.
Notes:
The offer is determined by the availability of the optical scanner! You can inform about the costs of a rental offer online by requesting a quote quickly and easily.
The scanner will be delivered at the first day of rental (in Germany till 10.30 a.m., outside Germany during the day) and collected on the last day of rental.
The calculation is made on a daily basis. Only Sundays are not invoiced as rental days.
For actuarial purposes, a security deposit will be demanded in advance. This caution will be cleared at the end of rental.
The offer price applies when you collect the scanner in one of our rental offices. Shipping will be possible; shipping will be invoiced extra according to expenditure.
The rental offer applies to the use of the rented scanner within Germany. On request, other countries are possible.
The general terms and conditions for 3D scanner rental apply.
Before the start of rental, a verification of the ability to handle the scanner will be required. We optionally offer a training.
Product weight:7,00 Kg
