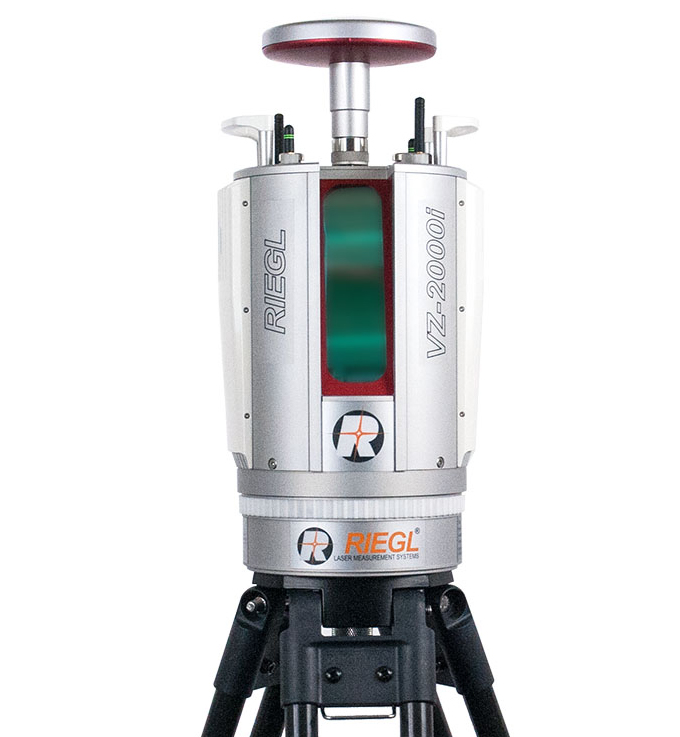

Riegl VZ-2000i

The RIEGL VZ-2000i is a long-range 3D laser scanning system based on a forward-thinking, innovative data processing architecture, internet connectivity, and RIEGL's latest waveform processing technology. The system combines user-friendly, field-proven tools with the accuracy and speed of data collection.
The new processing architecture allows you to perform various background tasks (such as point cloud registration, georeferencing, orientation using the built-in inertial measurement unit, etc.) in normal mode in parallel with the acquisition of scan data.
Complete documentation of the scanner software components available for the RIEGL system
VZ-2000i, allows you to create your own applications based on the Phyton programming language, expanding the functionality of the scanner.
Additional system capabilities are provided by connecting external peripherals and accessories, such as an integrated GNSS receiver for a highly accurate real-time solution and a SIM card slot
to connect 3G/4G LET, WLAN, LAN, USB, and other ports for external devices.
RIEGL's unique technology, which is based on echo digitization, analysis and real-time waveform processing, allows you to measure long distances with high speed and accuracy even in adverse weather conditions and in the presence of multiple reflections from multiple targets due to dust, fog.


Areas of use

Topography and mining
Monitoring of emergencies
Monitoring of construction sites
Archeology and preservation of cultural heritage
City Modeling
Shooting tunnels
Civil engineering
Research work

RIEGL VZ-2000i Features

Measurement range up to 2500 m, accuracy 5 mm.
Orientation sensor for estimating the position of the scanner.
Additional possibilities by connecting external peripherals
devices and accessories, such as an integrated GNSS receiver for
obtaining a high-precision solution in real time, a slot for
SIM cards for 3G/4G LTE, WLAN, LAN, USB connection.
Connect to cloud storage via LAN, Wi-Fi and 3G/4G LTE.
Reliable in operation even in harsh environments (protection class IP64).
Fully compatible with hybrid mobile scanning system
RIEGL VMZ.
RiSCAN PRO standard processing (included), RiMINING
workflow automation software (optional).

Advantages of VZ-2000i laser scanner:

high pulse repetition rate up to 1.2 MHz
high data acquisition rate up to 500,000 measurements/sec
the laser beam is safe for the eyes, class 1 laser
wide scanning sector 100°x360°
range up to 2500 m, accuracy 5 mm
Highly accurate ranging with high repeatability due to echo digitization, real-time waveform processing and
handling MTA ambiguity
new, innovative architecture for data collection with simultaneous real-time georeferencing
NEW! Automatic flight registration
easy to use - easy to learn (friendly touch interface, one-touch operation)
Ability to connect to cloud storage via Wi-Fi and 3G/4G LTE
fully compatible with the RIEGL VMZ hybrid mobile laser mapping system
simultaneous tracking of multiple targets
optional data output with waveform
orientation sensor for position estimation
remote control
built-in GNSS receiver

RIEGL RiSCAN PRO / RiSOLVE software

The RiSCAN PRO / RiSOLVE software enables automatic registration and staining of scanned data. The conveniently organized functionality of the software provides a fast and efficient process for collecting, registering and staining 3D scan data. Additional filtering, image animation and measurement tools allow you to quickly get results from the beginning of the survey to the creation of interpretable materials
