Everything for 3D ScanningAccessoriesRound checkerboard target 4.5" with adapter for Leica spigot
Round checkerboard target 4.5" with adapter for Leica spigot
In stock

Round checkerboard target 4.5" with adapter for Leica spigot

Product code 286
€0 EUR€215 EUR
DescriptionDetails & specsAttachments
Alternative to Leica GZT21 black & white scan target

The round checkerboard target is a cost-effective solution for users who prefer round targets in their laser scanning projects. With the aid of the adapter, you can use the checkerboatd target on Leica spigots. The center of the checkerboard target is thus identical to a standard Leica circular prism. In addition, a magnet is included in the set so that you can also easily attach the checkerboard target to metallic surfaces.

This checkerboard target is an alternative to the original Leica black & white scan target GZT21.

Product characteristics

Plate size: Ø 4.5"
Size: 14.0cm x 11.5cm x 5.0cm
Weight: ~220g
Torsion-resistant plate with low weight
Weather-resistant
Absolutely flat surfaces ensure good scanning results
On the back of the target is a semi-circular magnet system. This allows the target plate to be rotated and aligned, while the center of the target plate always remains identical.
The checkerboard target is supplied with the adapter for Leica spigots.

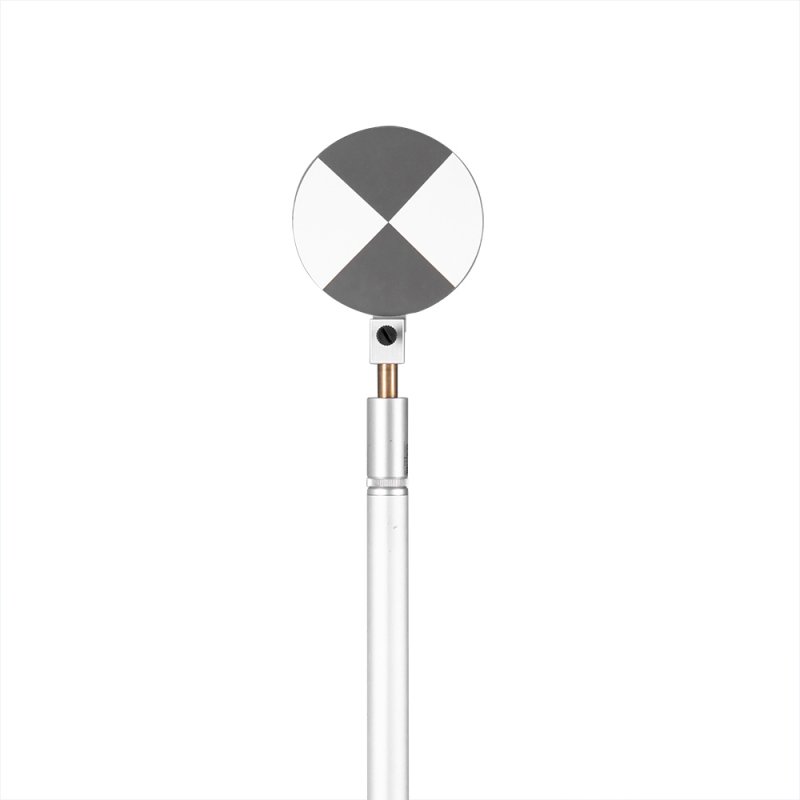

With the help of an adapter, the checkerboard target can be attached to a Leica plug. The center of the checkerboard target then corresponds to the height of a Leica prism.
The target has been tested with FARO scanners as well as Leica scanners.
The software solutions FARO Scene, Cyclone, Register 360 and PointCab detect the targets.
With the height adapter screwed in together with the standard magnet, the center of the checkerboard target corresponds exactly to the center of our reference spheres with 145mm diameter.
Compatible laser scanners

FARO Focus Premium
FARO FocusS & FocusM series
FARO Focus3D X series
Leica RTC360
Leica ScanStation P series
Leica BLK360
Designated use

Registration mark visible up to at least 25m*
Flexible and can be aligned as desired when used with a tripod or prism pole or with the help of the magnetic connection
*at highest resolution level (3mm @ 10m) with RTC360 and detection with Register360 and at ½ resolution (3mm @ 10m) with FARO Focus and detection with FARO Scene (good imaging geometry and lighting conditions)

Fields of application

Architecture, construction, and preservation of historic buildings and monuments
Digital factory and plant construction
Mining industry and tunnel construction
Energy and supplying industry
Aircraft construction and naval architecture
Forensic
Delivery content

1x checkerboard target with magnetic holder
1x standard magnet
1x adapter for Leica spigot
Not included: height adapter (can be purchased optionally)

Product weight:0,40 Kg
