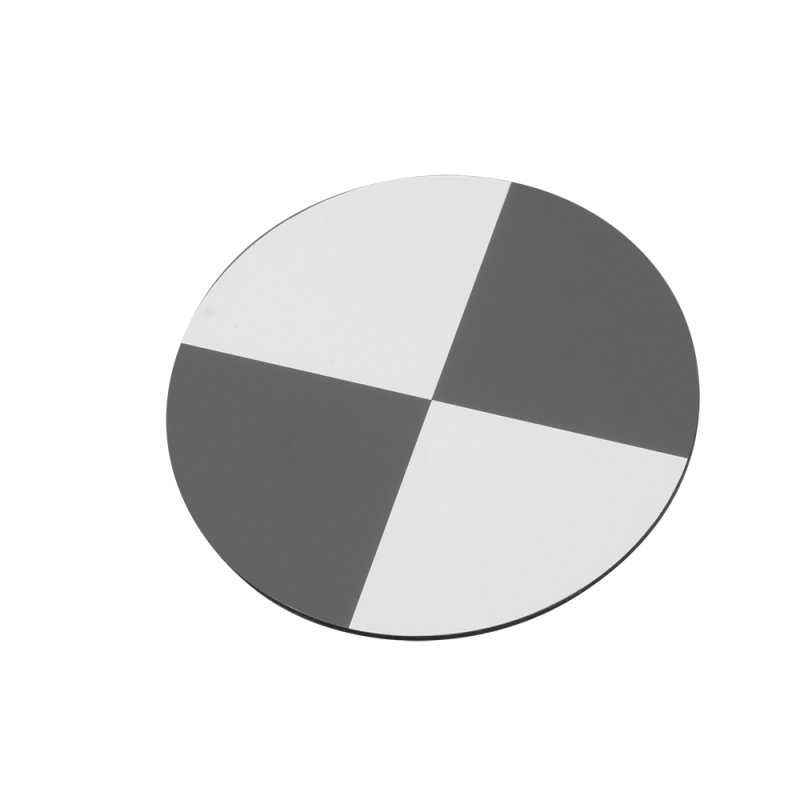

Do you want to use round checkerboard targets that are clearly visible from a distance, even outdoors, for your laser scanning project? Then this weather-resistant target plate with 6" diameter is an ideal choice.
Thanks to the LSE-typical magnetic mount, the round target is both compatible with our laser scanning accessories and suitable for attachment to magnetic surfaces.
Product characteristics
Plate size: Ø 6"
Size: 15.2cm x 15.2cm x 5.5cm
Weight: ~234g
Torsion-resistant plate with low weight
Weather-resistant
Absolutely flat surfaces ensure good scanning results
On the back of the target is a semi-circular magnet system. This allows the target plate to be rotated and aligned, while the center of the target plate always remains identical.
The checkerboard target comes standard with an M8 adapter including a magnet.
With the height adapter screwed in together with the standard magnet, the center of the checkerboard target corresponds exactly to the center of our reference spheres with 145mm diameter.
The target has been tested with FARO scanners as well as Leica scanners.
The software solutions FARO Scene, Cyclone, Register 360 and PointCab detect the targets.
Easy and fast application on magnetic surfaces thanks to centered magnetic holder.
Compatible laser scanners
FARO Focus Premium
FARO FocusS & FocusM series
FARO Focus3D X series
Leica RTC360
Leica ScanStation P series
Leica BLK360
Designated use
Registration mark visible up to at least 30m*
Flexible and can be aligned as desired when used with a tripod or prism pole or with the help of the magnetic connection
*at highest resolution level (3mm @ 10m) with RTC360 and detection with Register360 and at ½ resolution (3mm @ 10m) with FARO Focus and detection with FARO Scene (good imaging geometry and lighting conditions)
Fields of application
Architecture, construction, and preservation of historic buildings and monuments
Digital factory and plant construction
Mining industry and tunnel construction
Energy and supplying industry
Aircraft construction and naval architecture
Forensic
Delivery content
1x checkerboard target with magnetic holder
1x magnet base
Product weight:0,40 Kg
