Set consisting of 3 Tripod Adapters for Reference Spheres (145 mm/5.7 in sphere)

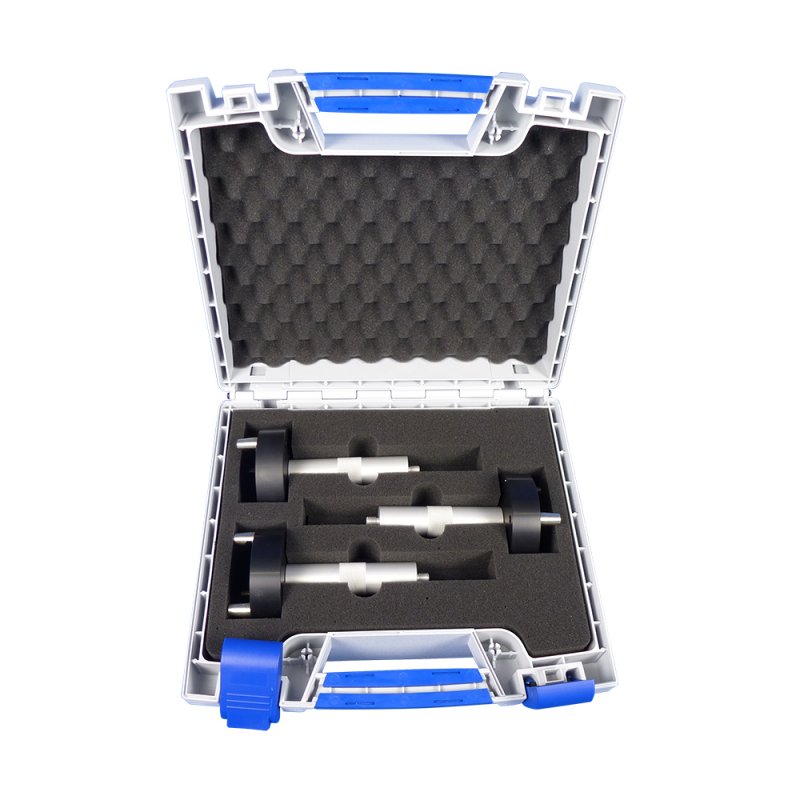

Set consisting of 3 tripod adapters for reference spheres (reference sphere with 145 mm/5.7 in diameter) in a case.

Do you need several tripod adapters for reference spheres for your laser scanning project? In that case, our set consisting of three tripod adapters with claw system for reference spheres is just what you need. The set consisting of three adapters for reference spheres with a diameter of 145 mm (5.7 in) is provided in a high-quality case; thus, it is perfect for traveling. You can easily screw your reference sphere on the tripod adapter and start the registration.

Product characteristics:

tripod adapter suitable for all claw systems
dimensions: 15cm/5.9 in height; 8cm/3.1 in diameter
adapter with M8 thread for screwing the reference sphere in tight
The center of a fixed reference sphere (145mm/5.7 in) is located in the height of the vertical axis and the tilting axis of all total stations with a tilting axis height of 196mm/7.7 in (e. g. Leica, Trimble).
Due to this position, the sphere's center can be determined tachymetrical easily by replacing the adapter by a prism.
case with precut foam insert for safe transport
case dimensions: 300 x 275 x 110 mm (11.8 x 10.8 x 4.3 in)
Designated use:

positive centering of your reference sphere on a tripod by using a claw system
Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your tripod.
Scope of application:

working with positive centering
creating reference points using fixed points on the ground by means of surveying tripod and tripod adapter with claw system
placing reference spheres in natural surroundings (woods and meadows) without suitable magnetic ground
Compatibility:

reference sphere Basic
reference sphere Traveler
reference sphere Flexi
reference sphere UltraX
Delivery contents:

3 x tripod adapter with claw system
1 robust plastic case with foam insert
Notes:

If you use a total station with a tilting axis height unlike 196mm/7.7 in, feel free to contact us! We will make an adapter that is adjusted for your individual needs.
Existing fixed points on the ground can easily be integrated in your laser scanning project.
The items delivered don not include a reference or a tripod.
Product weight:2,10 Kg
