Our small spheres with a diameter of 90mm support you in the registration and alignment of scans of small areas or even when combining scans of different scanner types. Thus, scans from terrestrial and handheld 3D scanners can be easily merged.
Due to the small case, the spheres take up little space and can be conveniently transported.
Product characteristics
Diameter: 90mm
Spherical shape allows the highest possible scanning efficiency from various directions
Has been proven to be the most effective laser scanning target
Reference sphere is a hollow made of plastic with a distinctive surface to achieve excellent reflective properties
Sphere has a female M8 thread where a magnetic base can be screwed in
Includes magnet base
Case dimensions: 390mm x 250mm x 190mm
Case with precut foam insert for safe transport
Designated use
Simplification of scan registration
Combination of scans from different scanner types
Useful for small scanning areas (e.g. in facilities)
For all indoor and outdoor applications
Fields of application
Architecture, construction and modeling
Energy and power supply companies
Factory and plant construction
Aircraft construction and shipbuilding
Crime scene and accident analysis
Compatibility
Terrestrial laser scanners
Handheld 3D scanners
Small range scanners
Any software if the sphere diameter of 90mm is defined
Delivery contents

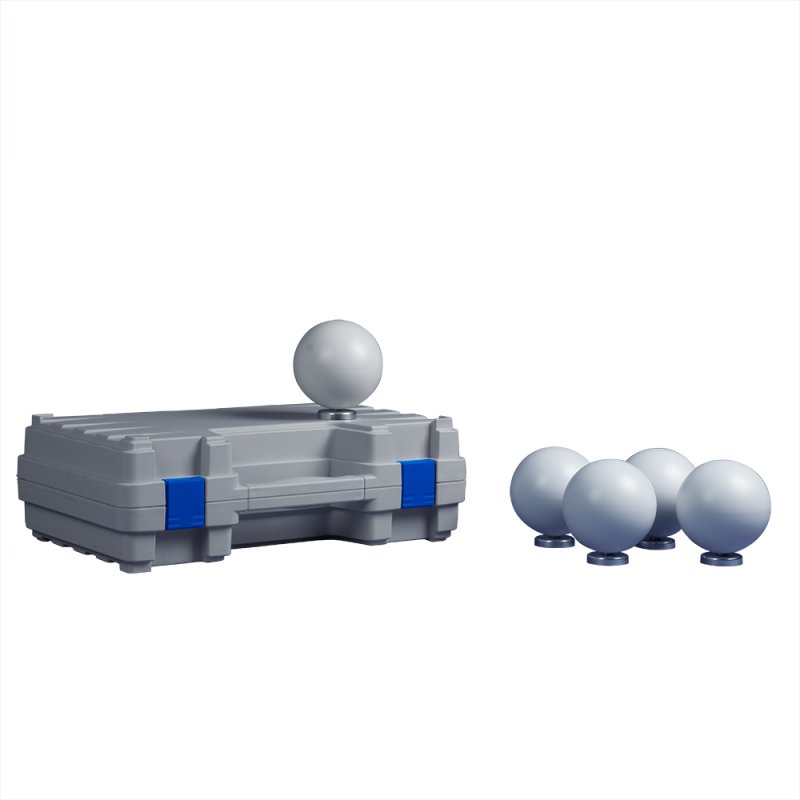

Set consists of 5 spheres Ø 90mm, 5 magnetic bases and a case
Notes
The reference sphere is the perfect measurement sphere for scanning under normal conditions. Only at very low or very high temperatures, there is a slight deviation in the diameter of the sphere. We recommend using and storing these spheres only in the range from 0 to +50 degree. If the spheres are used at extremely cold ambient temperatures (< -5 degree), a damage of the painted surface might arise.
Synonyms: reference ball, reference globe, target, scan sphere, reference target, control point, point of reference, reference point, reference sphere set, laser scanner target sphere set, laser scanner reference sphere set, laser scanner target sphere, laser scanner reference sphere, , target ball, ground control point, GCP, scan registration
Product weight:7,50 Kg
