Set consisting of 5 laser scanner reference spheres Ø100mm with Leica spigot

Do you want to register and align scans of smaller areas? Then the small 100mm diameter reference spheres are a suitable choice, especially if you are using Leica instruments. By detecting the spheres in the registration software, the scans can be merged smoothly.

When using the 100mm reference sphere in combination with the Leica spigot, the center of the sphere is located at a height of 196mm, which corresponds to the center of the Leica System.

The small reference spheres take up little space during transport and are easy to take along thanks to the small case.

Product characteristics

Diameter: 100mm
Spherical shape allows the highest possible scanning efficiency from various directions
Reference sphere is a hollow made of plastic with a distinctive surface to achieve excellent reflective properties
Screwed-in Leica spigot connection with quick-release lock
The distance between the center of the sphere and the upper edge of the Leica spigot is 60mm; this corresponds to the dimension of Leica standard prisms
Sphere has a female M8 thread; use with other adapters is possible
Case dimensions: 390mm x 310mm x 140mm
Case with precut foam insert for safe transport
Suitable for short-range measurements up to 10m at ¼ resolution
Designated use

Simplification of scan registration
Combination of scans from different scanner types
Useful for small scanning areas
For all indoor and outdoor applications
Fields of application

Architecture, construction and modeling
Energy and power supply companies
Factory and plant construction
Aircraft construction and shipbuilding
Crime scene and accident analysis
Compatibility

Terrestrial laser scanners
Handheld 3D scanners
Small range scanners
Any software when the diameter of the spheres used is defined.

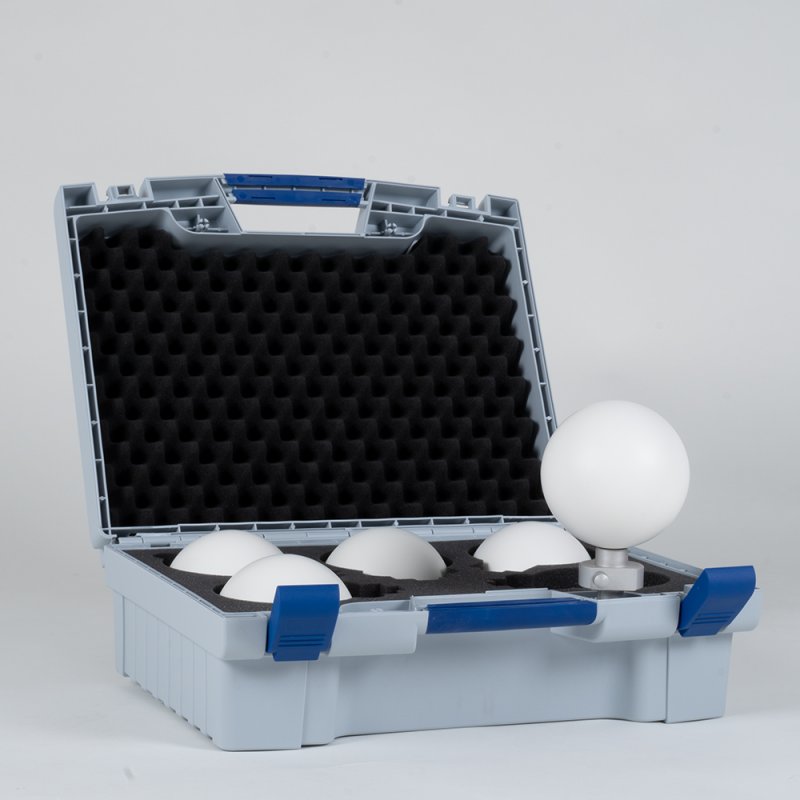

Delivery contents

5 reference spheres Ø100mm
5 Leica spigots
1 case


Please note

The reference sphere is the perfect measurement sphere for scanning under normal conditions. Only at very low or very high temperatures, there is a slight deviation in the diameter of the sphere. We recommend using and storing these spheres only in the range from 0 to +50 degree. If the spheres are used at extremely cold ambient temperatures (< -5 degree), a damage of the painted surface might arise.



Synonyms: reference ball, reference globe, target, scan sphere, reference target, control point, point of reference, reference point, reference sphere set, laser scanner target sphere set, laser scanner reference sphere set, laser scanner target sphere, laser scanner reference sphere, , target ball, ground control point, GCP, scan registration

Product weight:7,50 Kg
