Set consisting of 5 laser scanner reference spheres Ø100mm with magnet

The small 100mm diameter reference spheres help you register and align scans of small areas or combine different scanner types. By using the spheres, merging scans from terrestrial and handheld 3D scanners is achieved smoothly.

Thanks to the small case, the spheres take up little space and are easy to transport.

Product characteristics

Diameter: 100mm
Spherical shape allows the highest possible scanning efficiency from various directions
Sphere has a female M8 thread; use with other adapters is possible
Reference sphere is a hollow made of plastic with a distinctive surface to achieve excellent reflective properties
Includes magnet base
Case dimensions: 390mm x 310mm x 140mm
Case with precut foam insert for safe transport
Suitable for short-range measurements up to 10m at ¼ resolution
Designated use

Simplification of scan registration
Combination of scans from different scanner types
Useful for small scanning areas
For all indoor and outdoor applications
Fields of application

Architecture, construction and modeling
Energy and power supply companies
Factory and plant construction
Aircraft construction and shipbuilding
Crime scene and accident analysis
Compatibility

Terrestrial laser scanners
Handheld 3D scanners
Small range Scanners
Any software when the diameter of the spheres used is defined.

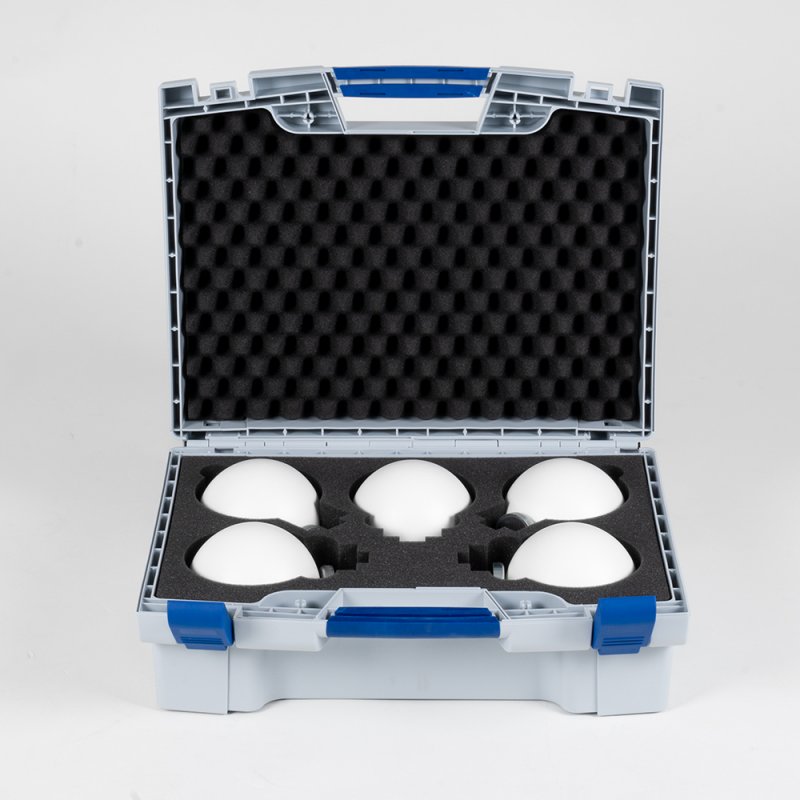

Delivery contents

5 reference spheres Ø100mm
5 magnetic bases
1 case


Please note

The reference sphere is the perfect measurement sphere for scanning under normal conditions. Only at very low or very high temperatures, there is a slight deviation in the diameter of the sphere. We recommend using and storing these spheres only in the range from 0 to +50 degree. If the spheres are used at extremely cold ambient temperatures (< -5 degree), a damage of the painted surface might arise.



Synonyms: reference ball, reference globe, target, scan sphere, reference target, control point, point of reference, reference point, reference sphere set, laser scanner target sphere set, laser scanner reference sphere set, laser scanner target sphere, laser scanner reference sphere, , target ball, ground control point, GCP, scan registration

Product weight:7,50 Kg
