Small laser scanner checkerboard targets as a set

Universal: The laser scanning target plate can be used with both laser scanners and tachymeters (non-reflective).
Flexible: Besides its compact dimensions ensuring easy handling, the target plate is an ideal laser scanning companion due to its ability to measure long distances.

Product characteristics:

torsion-stiff plates with low weight
weather-resistant
remarkably even surfaces ensure excellent results
dimensions of the plate: 24 x 21cm (9.4 x 8.3 in)
dimensions of the checkered pattern: 20 x 20 cm (7.9 x 7.9 in)
integrated circular level
can be mounted on different tripods and fits onto various adapters (available for Leica plug, M8 + magnet, 1/4" and 5/8'')
The axis of the checkered pattern is exactly situated in the axis of the connection. In the case of a level target plate, the center of the target mark is still unchanged in position and height when it pivots on the axis.
The target plate's center has the standard height of the tilting axis of 196mm (7.7 in) (when the 5/8" connection is used in conjunction with a 32mm (1.3 in) tall tripod.
bag made of a padded water-repellent material

Designated use:

registration mark visible up to 25m (984.3 in)
can be positioned flexibly and adjusted arbitrarily by use of a tripod or a prism pole
Field of application:

architecture, construction, and preservation of historic buildings and monuments
digital factory and plant construction
mining industry and tunnel construction
energy and supplying industry
chemical and process engineering
forensic
Compatible laser scanners

FARO Focus Premium
FARO Focus S 70
FARO Focus S 150
FARO Focus S 350
FARO Focus M 70
Leica RTC360
Leica BLK360
FARO LS 420
FARO LS 880
FARO Photon LS 20
FARO Photon LS 80
FARO Photon LS 120
FARO Focus3D S 20
FARO Focus3D S 120
FARO Focus3D X 30
FARO Focus3D X 130
FARO Focus3D X 330
Trimble TX5
Trimble TX8
Leica HDS 4400/6100
Leica ScanStation P20/ P30/ P40
Teledyne Polaris
Tripod socket compatibility:

Leica plug (fixation is made with a horizontal knurled screw)
5/8'' for fixation onto tripods or other appropriate surveying accessories
1/4 inch for use on camera tripods
M8 thread + magnet: can be used with a LSE prism pole, a suction cup holder or simply with the magnets of our reference spheres
Further connection options are possible. Please contact us!
Delivery contents:

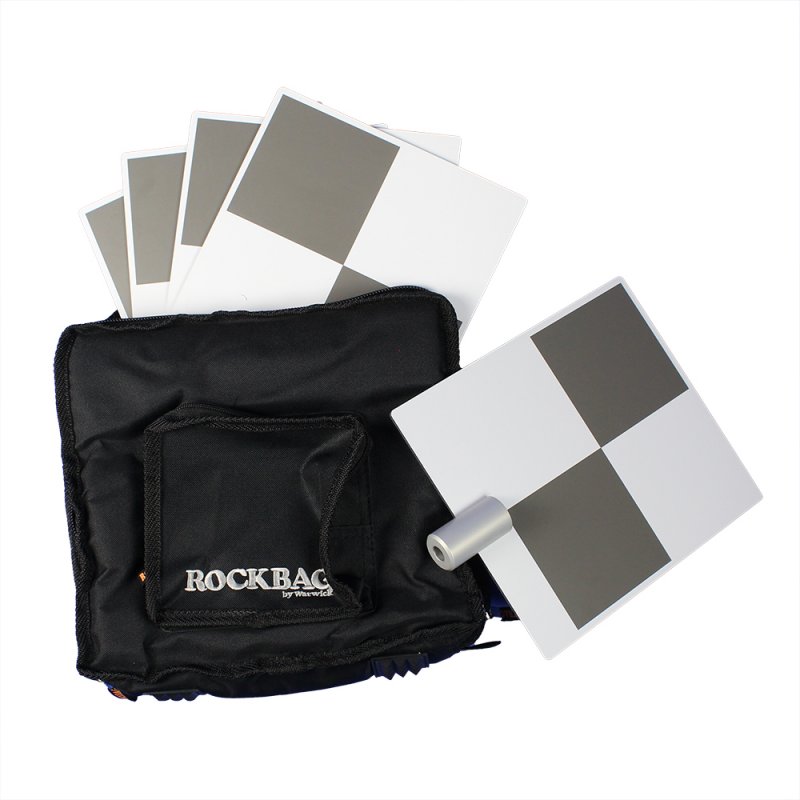

5 x small laser scanner target plate
5 x M8 thread + magnet
1 x bag for safe transport
Hints for registration in FARO Scene:

If you use pivoted checkerboard targets (orientation towards the scanner), you should deactivate the box “Use Checkerboard Normals” in the default setting of placement of scans in Scene Software. For more information, click here.


Product weight:2,50 Kg
