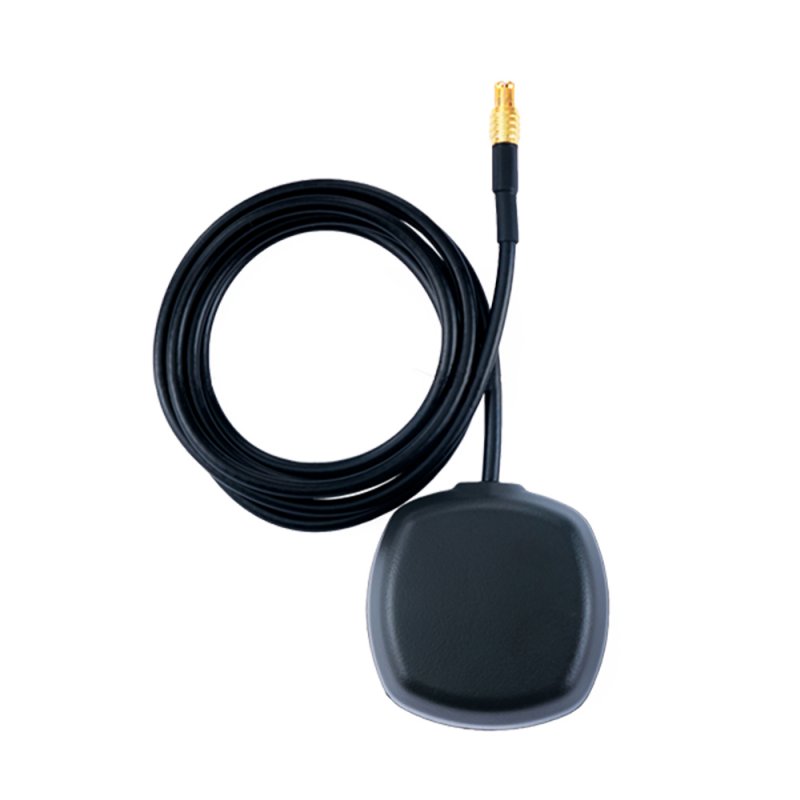

Tallysman GNSS antenna for Reach M+

Tallysman TW4721 is a compact, broadband GNSS antenna with Accutenna™ technology. It provides accurate reception for all upper L-band GPS, GLONASS, Beidou and Galileo signals (L1, G1, B1, B1 BOC, B12, E1) and associated extension signals (WAAS, EGNOS and MSAS SBAS).

product properties

Version: Tallysman TW4721
Excellent rejection of multipath signals
Good rejection of out-of-band signals
Excellent signal to noise ratio
Smooth response at all operating temperatures
Architecture: Dual, quadrature feeds
Dimensions: 38 x 38 x 14mm
Weight: 50g
LNA Gain: 26dB min
Operating current: 10mA / 15mA max
Operating voltage: 1.8 - 16 VDC
scope of delivery

Tallysman GNSS antenna for Reach M+
Product weight: 1.00 kg
